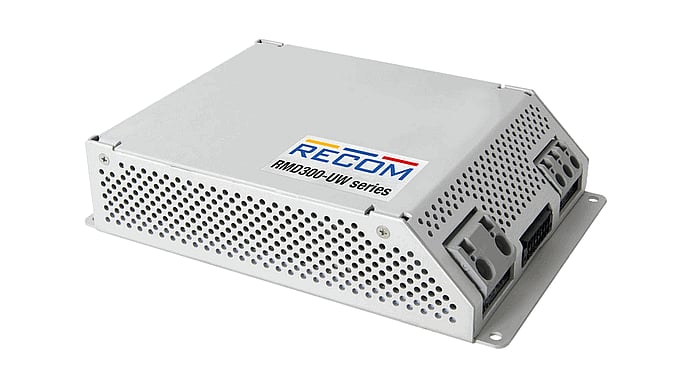

300W Railway DC/DC converter In: 16.8-137.5Vdc / Out 24Vdc / 13.75A
CHF 355.85 excl. VAT, plus shipping costs
Description
The RMD300 series DC/DC converter, which can be mounted in a housing, is designed for rail vehicles and transportation applications and complies with all relevant standards: EN50155, EN50121-3-2, DB-EMV06, EN50124-1, EN50125-1, EN61373 1B, EN62368-1, EN45545-2. RDM300 covers a 12:1 input voltage range from 16.8VDC to 137.5VDC and provides an isolated and regulated 24V output with reinforced isolation system. The mounting on a base plate allows a wide operating temperature range for class OT4+ST1&ST2 from -40°C to +85°C without degradation of performance. Input reverse polarity protection, inrush current limitation, 10 ms bridging time, remote control and output OR-ing diode and an efficiency of up to 94.8 % round off the functionality of this fully rail-compatible plug & play device.
Technical data
- Fully EN50155 compliant, no external circuits
- Ultra-wide entrance area 12:1 reduces product variety
- Excellent efficiency, lowest power loss, full service life
- Full power up to +85° without heat sink, no derating
- Active input reverse polarity protection
- Active inrush current limitation - Network protection
- 10 ms bridging time over the entire input range
- Reinforced insulation, 6 mm air/creepage distances
- Trim output for long cable runs or for charging batteries
- Parallel and redundant operation
- 10% peak load capacity for 10 seconds
- Remote (on/off) and DC OK with relay changer
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RMD300-110-24SEU | PDF(442.08 KB) |
|---|
Downloads
| 3D data RMD300 | Zip file (5.85 MB) |
|---|
