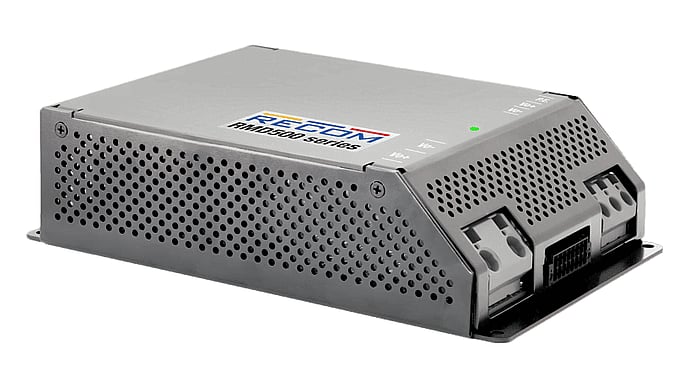

500W Railway DC/DC converter In: 50.4-137.5Vdc / Out 24Vdc / 21A
CHF 410.10 excl. VAT, plus shipping costs
Description
The RMD500 series DC/DC converter, which can be mounted on a housing, is designed for rail vehicles and transportation applications. The device is designed with a 4:1 input voltage range of 43.2VDC to 170VDC for nominal 72V and 110V. The 5kVdc isolated 24Vdc output ensures safe isolation of the load. The converter has a constant and high efficiency of 95%, and the baseplate mounting allows a wide operating temperature range for class OT4+ST1&ST2 from -40°C to +85°C without derating. Input reverse polarity protection, inrush current limiting, 10 ms bridging time, remote control and OR-ing diodes at the output round off the functionality of this fully rail-compatible plug & play device.
Technical data
- Fully track-approved for EN50155 (S2) applications
- EN50121-3-2, EN50124-1, EN62368-1, EN61373, EN45545-2
- Plug&Play unit for natural convection cooling
- Wide-range input for nominal 72V and 110V
- Outstanding efficiency and functionality
- Parallel and redundant operation
- Extremely reliable and robust
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet RMD500-110-24SEW | PDF(504.57 KB) |
|---|
Downloads
| 3D data RMD500 | Zip file (6.46 MB) |
|---|
