PF24.5-C16, **NEW** Reel2Reel TUNABLE WHITE LED strips, KSF, constant current

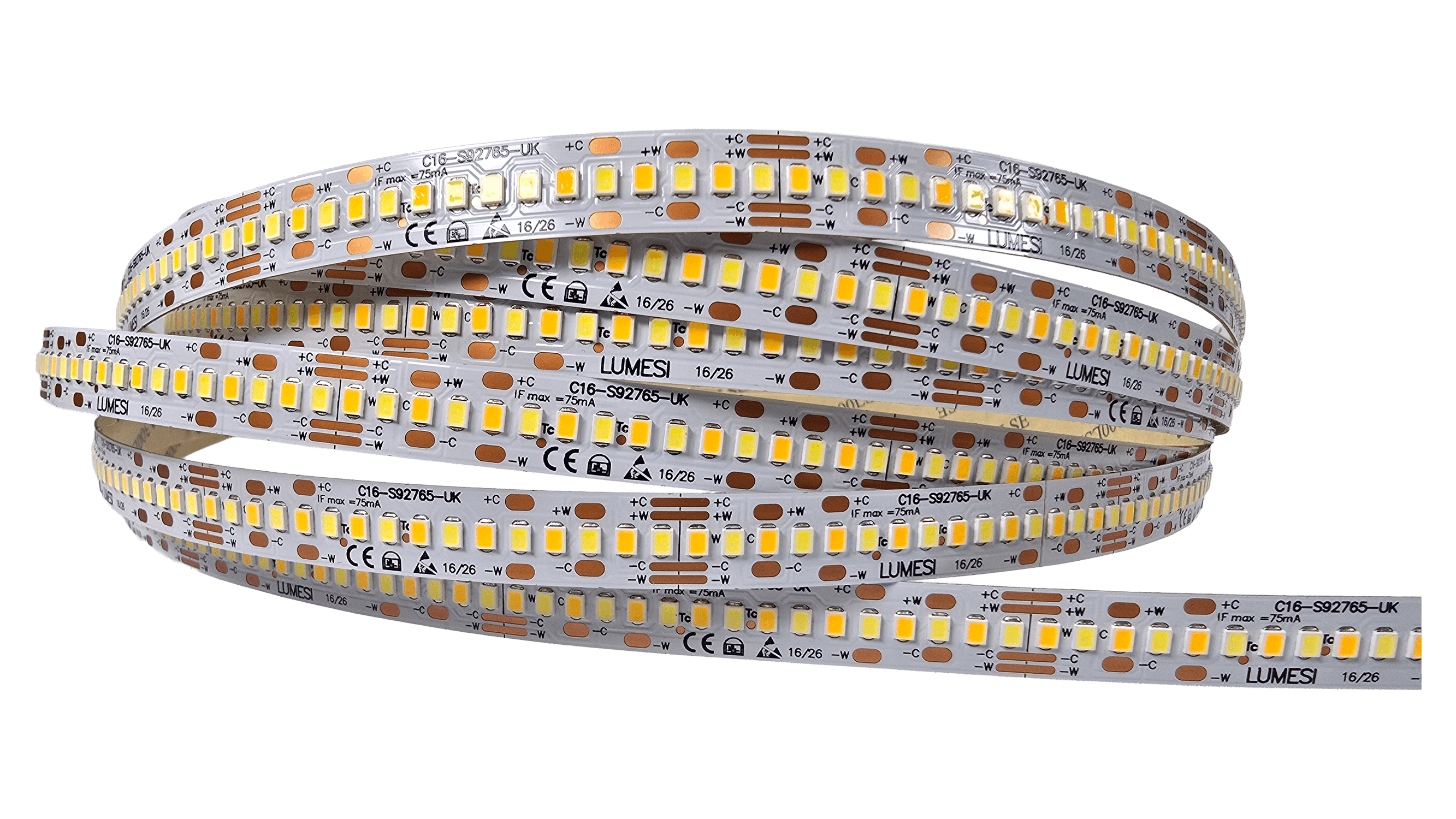

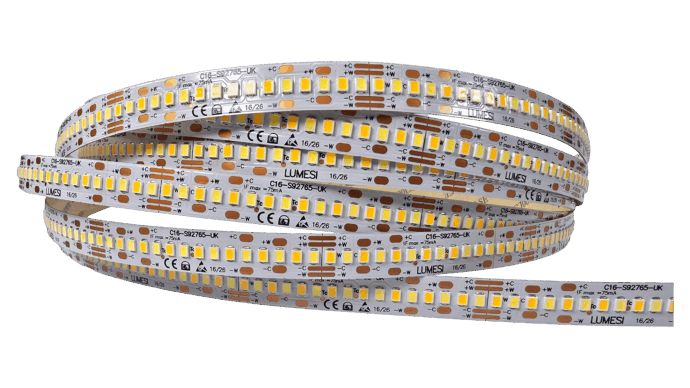

NEW HIGH-END REEL-TO-REEL TUNABLE WHITE LED strips
- Now with more copper and improved range with a single-sided power supply
- Reel2Reel cheaper than ever before!
CHF 499.60 excl. VAT, plus shipping costs
Item No.:
PF24.5-C16-S92765-UK
In stock: Available to order
Description
- **NEW**
- New dimmable, flexible TUNABEL WHITE Reel2Reel CC constant-current LED strip
- Constant current strips with extremely high efficiency at CRI>90 to 185 lm/W @Tc 40°C thanks to the KSF 2835 LED
- Energy Class C
- >10,000lm/2m and still far from the limit
- 2700–6500K
- Very high color rendering Ra >90
- Very narrow color tolerance, MacAdam3
- TM-21 L80B10 @ Ts. 85°C: > 102kh
- Length of the flexible print is 15m without interruption = no solder joints
- Narrow LED to LED distance enables short distance to the diffuser and excellent homogeneity
- Extremely high design flexibility thanks to 7-centimeter cutting options
- Only 12 mm wide
- Smart solder pad layout for quick and easy wiring
- Self-adhesive 3M VHB tape on the back for easy mounting on different surfaces
- Ideal for applications where high luminous fluxes are required
- Maximum flexibility in practice. Save production time and reduce your stock levels!
Additional information
| LED strips | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| PF24.5-C16-S92765-UK | PDF(2.28 MB) |
|---|
Downloads
| EPREL Label | Zip file (42.9 KB) |
|---|
Accessories
-
FLS-20-500-DALI2-DT8-LN-PRO-C
20W Tunable White LED driver 80 to 500mA, 2.5 to 49Vdc, DALI DT8CHF 56.10283 Available immediately -
SRPL-2309N-30CCT250-850
30W DALI2 DT8, AC-PUSH, Tunable white, Linear constant current LED driver, 250-850mA, NFCCHF 47.3073 Available immediately -
SRP-9101-36-TW-C1050NFC
36W ZigBee 3.0, AC-PUSH, Tunable White LED TREIBER CC 350-1050mA with NFCCHF 53.9047 Available immediately -
LCM-40TW
40W LED driver CC 500-1050mA, DALI2, DT8, DT6 for single color and Tunable White applicationsCHF 63.80104 Available immediately -
FLS-42-1050-DALI2-DT8-LN-PRO-C
42W Tunable White LED driver 300 to 1050mA, 2.5 to 49Vdc, DALI DT8CHF 80.50107 Available immediately -
SRP-9105-45-TW-C1400NFC
45W Casambi, Tunable white, constant current LED driver, 500-1400mA, NFCCHF 103.4029 Available immediately -
SRPL-2309N-60CCT900-1700
60W DALI2 DT8, AC-PUSH, Tunable white, Linear constant current LED driver, 900-1700mA, NFCCHF 70.00Available to order -
SRP-2309-75-PRO-CC
75W DALI DT8, 4in1, constant current LED driver 250-1500mACHF 113.7028 Available immediately -
SRPL-2309N-80CCT1000-2000
80W DALI2 DT8, AC-PUSH, Tunable white, Linear constant current LED driver, 1000-2000mA, NFCCHF 79.1027 Available immediately -
SC-2309-RP-AC-EDIZIODUE
DALI2 DT8 rotary switch, Tunable white, wall mounting, EdizioDue compatibleCHF 105.0010 Available immediately -
CABLE2M-TW-3X0.35-HF
Tunable White 3×0.35mm² cable with black sheath, halogen-free (roll = 200m)CHF 168.4020 Available immediately
