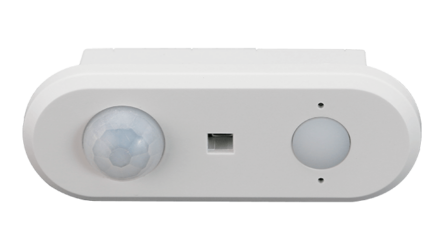

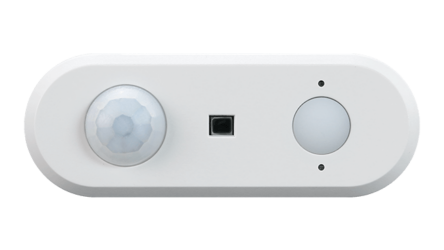

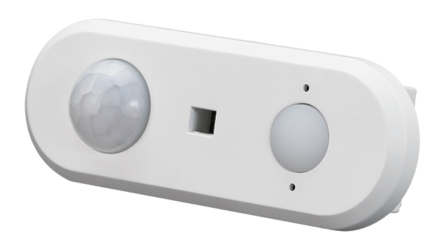

CASAMBI Recessed Light Motion Sensor and Light Sensor Zhaga 20
CHF 87.00 excl. VAT, plus shipping costs
Description
The sensor integrated into the luminaire combines presence detection, daylight utilization, DALI dimming, and Casambi wireless technology in a compact housing that fits into various luminaires. When used with DALI LED drivers, it enables any luminaire manufacturer to offer wirelessly controllable, sensor-equipped luminaires with minimal development effort. The sensor-equipped luminaires simply need to be connected to the power grid. The result is enhanced user comfort and significant energy savings that meet even the most stringent building energy regulations.
• Control a large number of lights from anywhere
• Easy-to-use interface
• Extensive functionality – grouping of lights, different lighting scenarios for various occasions, color temperature, daylight sensor, motion detector, and much more.
Technical data
- PIR motion detection
- Daylight utilization
- Compatible with DALI-2 D4i drivers or non-D4i drivers, broadcast control
- Autonomous sensor-based control
- Installation by mounting inside the light fixture
- IP 20
- 5 year guarantee
Additional information
| LED sensors | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
Data sheets
| SR-2305-PIR-FI-CS | PDF(877.95 KB) |
|---|
