LED converter constant voltage

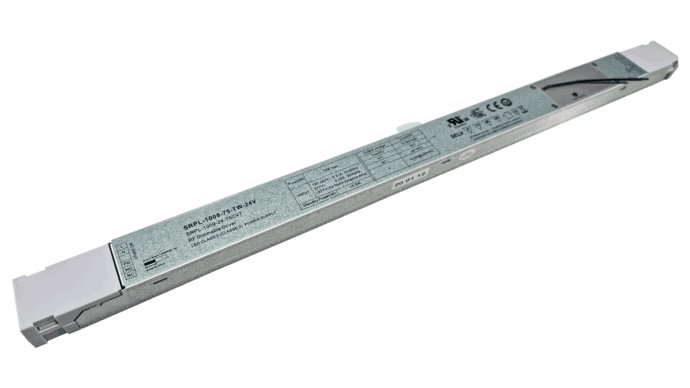

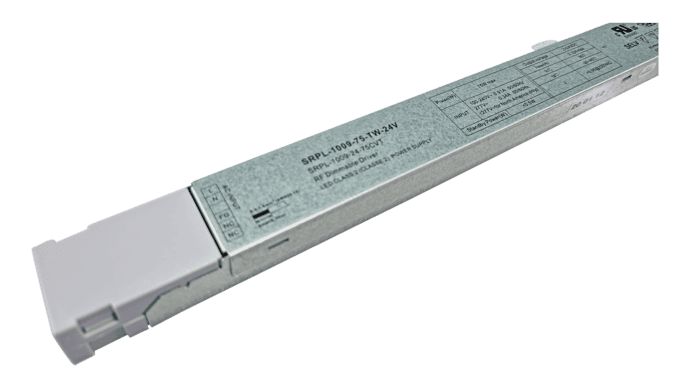

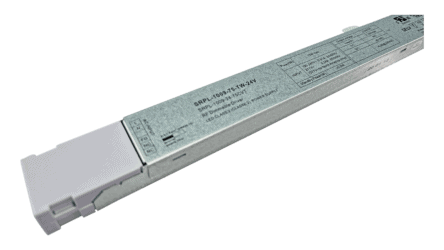

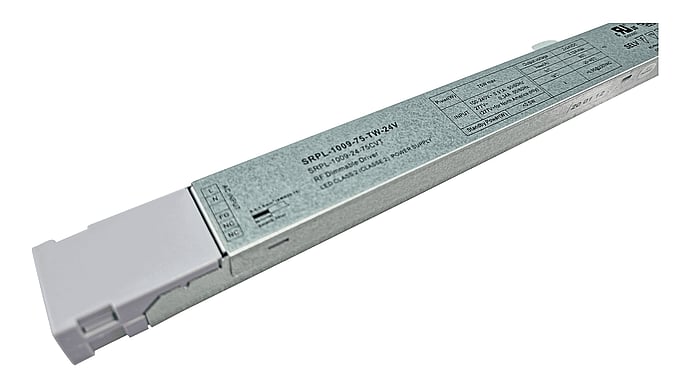

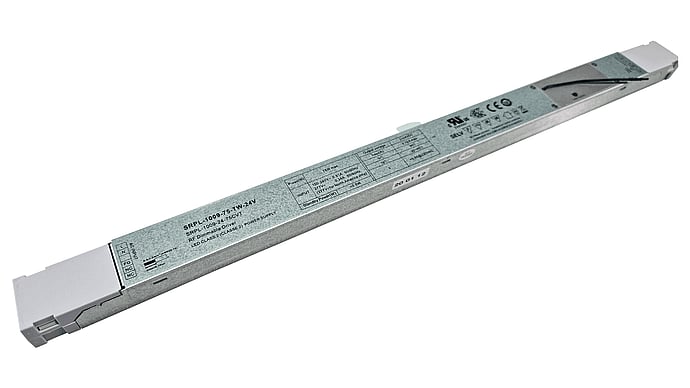

75W RF/LV PUSH, Tunable white, 24Vdc constant voltage LED driver
CHF 126.25 excl. VAT, plus shipping costs
Item no:
SRPL-1009-75-TW-24V
Stock level:24 Available immediately
Description
SRPL-1009-75-TW-24V with PWM output and integrated radio interface is ideal for operating Tunable White constant voltage LED applications such as LED strips.
Control
- RF Wireless, Low Voltage Push
Application
- Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Radio (RF) dimmable 2-channel TW or single color power supply unit
- 100-277VAC wide input voltage range
- 2-channel 24V (total output power up to 75W)
- 75W are automatically distributed to the mixed colors
- Can be used as a single color or dual color (TW) power supply unit
- Compatible with all remote controls in the SC-1009 series
- DC push dimming function possible (if connected)
- IP20 protection class, suitable for indoor lighting projects
- Protection class I Driver with earth connection
- Metal housing
- Operating temperature range from -20°C to +45°C
- Dimension 486 x 30.7 x 20.9mm
- 5 year guarantee
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Datenblatt SRPL-1009-75-TW-24V$ | PDF(299.42 KB) |
|---|
