LED converter constant voltage

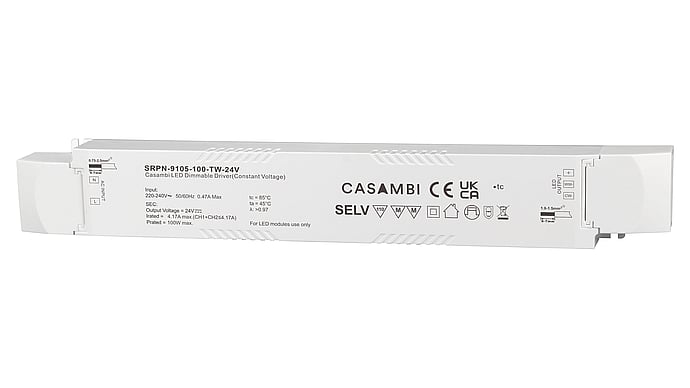

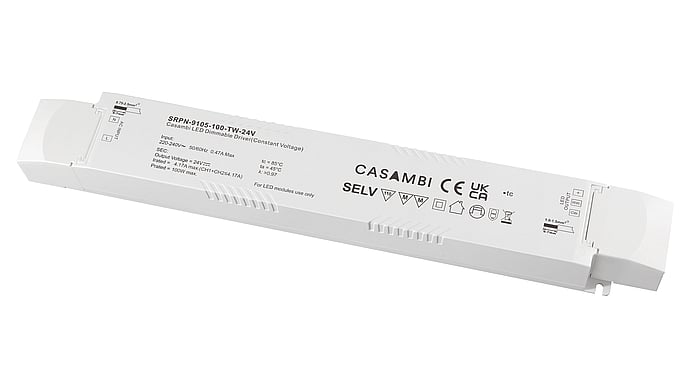

100W Casambi, Tunable White, 24Vdc constant voltage LED driver
***NEW CASAMBI Tunable White constant voltage LED driver***
CHF 139.90 excl. VAT, plus shipping costs
Item no:
SRPN-9105-100-TW-24V
Stock level:85 Available immediately
Description
SRPN-9105-100-TW-24V with PWM 1.5kHz output and integrated Casambi interface is ideal for the operation of Tunable White constant voltage LED applications such as LED strips.
Control
- Casambi
Application
- Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Casambi dimmable Tunable White LED driver
- 2 Channel
- Class II power supply unit, fully insulated plastic housing, integrated active PFC function
- PF > 0.97, efficiency > 93%, standby power < 0,5W
- Can be controlled both via Casambi app and Casambi wall switch
- Simple commissioning with the Casambi app
- Built-in antenna
- Overtemperature/overload/overvoltage protection
- Operating temperature range from -25°C to +45°C
- Dimension 306.6 x 43 x 30mm
- 5 year guarantee
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
Data sheets
| SRPN-9105-100-TW-24V | PDF(666.64 KB) |
|---|
