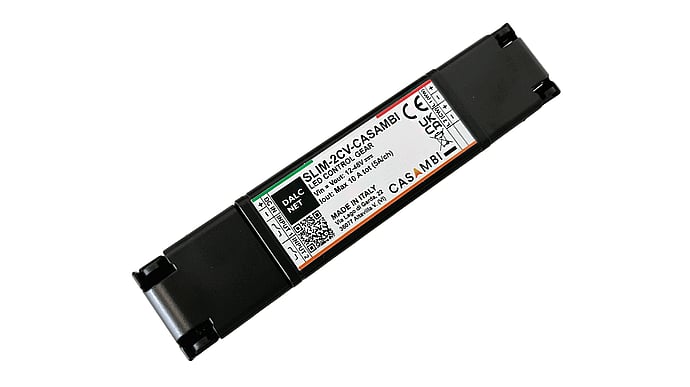

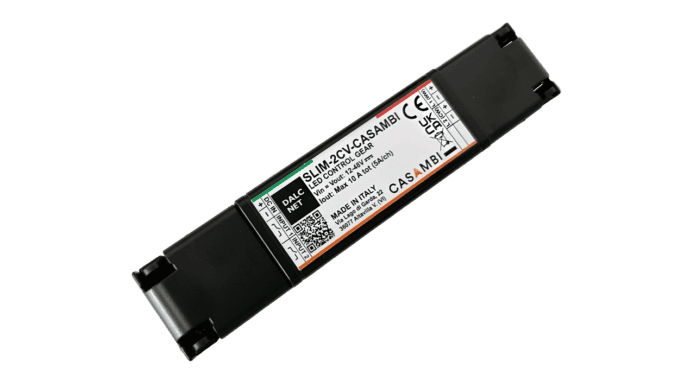

2 channel CASAMBI LED dimmer, constant voltage 12-48VDC, linear compact design
CHF 107.80 excl. VAT, plus shipping costs
Description
The SLIM-2CV-CASAMBI is a 2-channel output LED dimmer that can be controlled via Bluetooth using the Casambi app or locally using two normally open buttons. This versatile LED dimmer is suitable for controlling loads such as strip LEDs and LED modules in white, monochrome colors, dynamic white and dim-to-warm applications at constant voltage. It can be operated with a voltage supply of 12-24-48 Vdc and offers a maximum output current of 10A. The dimmer has protection functions, including overvoltage protection, undervoltage protection, reverse polarity protection and input fuse protection.
Using the Casambi app, the SLIM-2CV-CASAMBI enables a wide range of control options, from simple brightness settings to more complex lighting control systems, including the creation of multiple scenarios, animations, timers and daylight controls.
The Casambi app is available to download free of charge from the Apple App Store and the Google Play Store.
To ensure that the Casambi app is working properly, please visit the Casambi forum on their website: https://support.casambi.com/support/home."
Technical data
- CASAMBI LED DIMMER
- Input: 12-24-48 Vdc
- Voltage output for LED strips and LED modules
- WHITE, MONOCOLOR, DYNAMIC WHITE and DIM TO WARM Light control
- Command: CASAMBI APP
- Local command: Button N°2 Normally open
- Control voltage output for R
- Minimum brightness level: up to 0.5%
- PWM modulation
- Frequency PWM 4000Hz
- Linear / logarithmic adjustment curve depending on the set light
- Soft start and soft stop
- Smooth dimming control
- Extended temperature range
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
Data sheets
| SLIM-2CV-CASAMBI | PDF(574.4 KB) |
|---|---|
| Casambi App User Guide | PDF(14.68 MB) |
