LED converter constant current
35W LED driver constant current 300/350/500/600/700mA, 15-52Vdc, MD plug
CHF 26.00 excl. VAT, plus shipping costs
Item no:
FMS-35-700 LD-MD
Stock level:175 Available immediately
Packaging ex works:
63 piece
Description

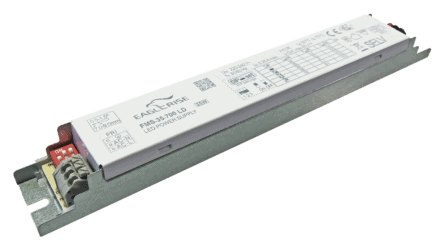

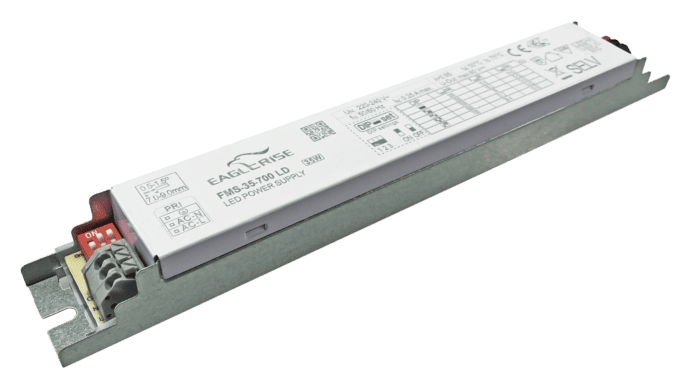

The LED driver FMS-35-700 LD with constant current output is designed for operating LED lighting applications from 300 to 700mA in the voltage range from 15 to 52Vdc. The output current can be set using the DIP switch on the device.
Mounted with MD plug connector MD-WIRE0500-F-AWG20
Technical data
- Input voltage 176 to 264Vac
- Forward voltage range 15 to 52Vdc
- Adjustable output currents 300mA / 350mA / 500mA / 600mA / 700mA (factory setting)
- Dimensions 220 x 30 x 21mm (L x W x H)
- 5 year guarantee
- Manufacturer: Eaglerise
- With MD plug connector MD-WIRE0500-F-AWG20
- For the T5/T8 LUT LED luminaires
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet FMS-35-700 LD | PDF(1.03 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FMS-35-700 LD | Zip file (2.8 MB) |
|---|
