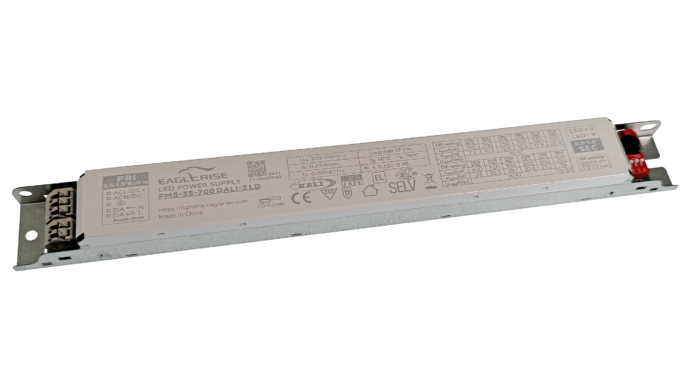

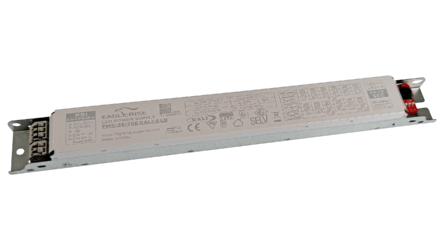

35W LED driver constant current 150 to 700mA, 15-51Vdc, DALI2, AC push, MD connector
CHF 36.20 excl. VAT, plus shipping costs
Description
The LED driver FMS-35-700 DALI2 LD with constant current output is designed for the operation of LED lighting applications from 150 to 700 mA in the voltage range from 15 to 51Vdc. The output current can be set using the DIP switch on the device. The dimming range is 1 to 100% and can be controlled via AC Push or DALI.

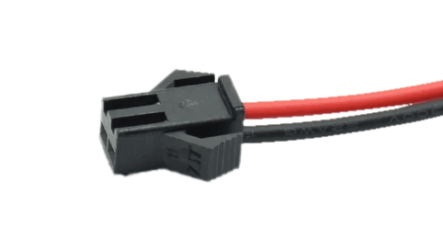

Mounted with MD plug connector MD-WIRE0500-F-AWG20
Technical data
- Forward voltage range 15 to 51Vdc
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA (factory setting)
- Dimming range 1 to 100% from 250 to 700A and minimum dimming level 4mA at 150 to 250mA
- Supports DALI Maintenance (Part 251,252,253)
- EOFI level 100%
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 year guarantee
- Manufacturer: Eaglerise
- For the T5/T8 LUT LED luminaires
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet FMS-35-700 DALI2 LD | PDF(1.27 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FMS-35-700 DALI2 LD | Zip file (526.13 KB) |
|---|
