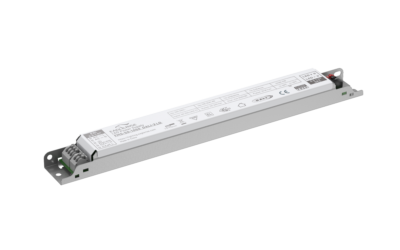

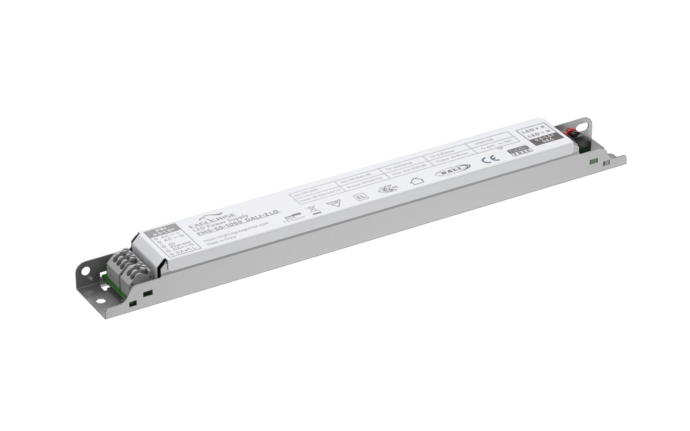

50W LED driver constant current 350-1050mA, 15-51Vdc, DALI2, AC push, MD plug
CHF 57.30 excl. VAT, plus shipping costs
Description
The LED driver FMS-50-1050 DALI2 LD with constant current output is designed for the operation of LED lighting applications from 350 to 1050 mA in the voltage range from 15 to 51Vdc. The output current can be set using the DIP switch on the device. The dimming range is 1 to 100% and can be controlled via AC Push or DALI.
Assembled with MD connector MD-WIRE0500-F-AWG20.
Technical data
- Forward voltage range 15 to 51Vdc
- Adjustable output currents 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA (factory setting)
- Dimming range 1 to 100%, 1-13% with PWM 3kHz, 13% to 100% with amplitude dimming
- Supports DALI Maintenance (Part 251,252,253)
- EOFI level 100%
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 year guarantee
- Manufacturer: Eaglerise
- For the T5/T8 LUT LED luminaires
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet FMS-50-1050 DALI2 LD | PDF(1.34 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FMS-50-1050 DALI2 LD | Zip file (526.13 KB) |
|---|
