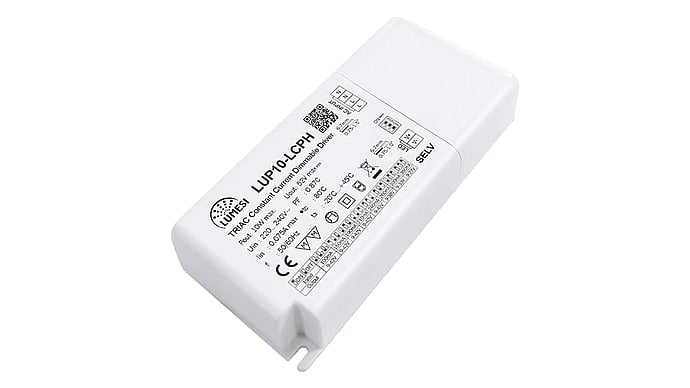

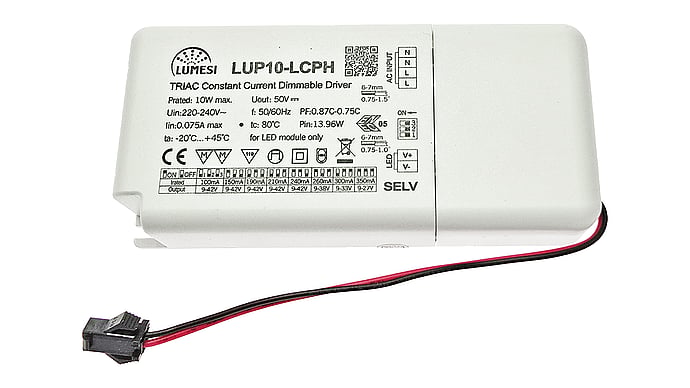

10W TRIAC LED DRIVER 100-350mA
CHF 17.70 excl. VAT, plus shipping costs
Description
LUP10-LCPH is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with TRIAC/phase dimmers.
Control
- TRIAC
Application
- Single Color
Dimming range
The dimming range is 1% to 100% of the output current.
Dimming method: Amplitude dimming, soft and deep dimming up to 1%
Technical data
- LUP10-LCPH is a triac dimmable 10W LED driver with adjustable output current
- The output current can be selected via a dip switch
- Max. Output power 10W
- 1 channel 100-350mA constant current output adjustable with DIP switch
- Triac dimming function
- Dimming range: 1-100%, uniform dimming effect, no flickering
- Protective functions: Short circuit, overload
- High power factor and efficiency
- For switching and dimming single-color LED lighting
- Dimension: 114 x 53 x 22mm
- Protection class IP20
- 5 year guarantee
-> Wonderful dimming behavior together with the SC-9101-PHAB-RP-EDIZIODUE
-> Incl. MD plug for the LUS50 spotlight
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| LUP10-LCPH | PDF(283.18 KB) |
|---|
