LED operating elements

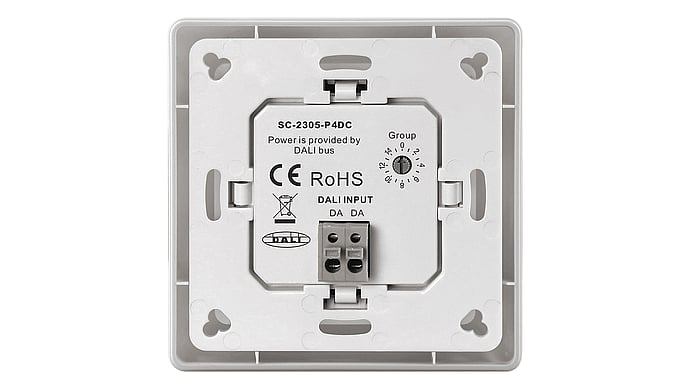

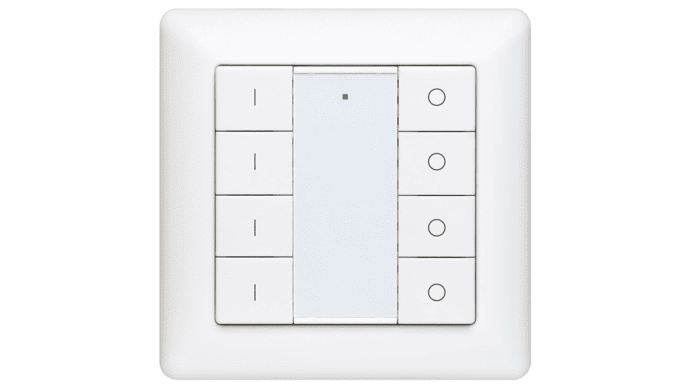

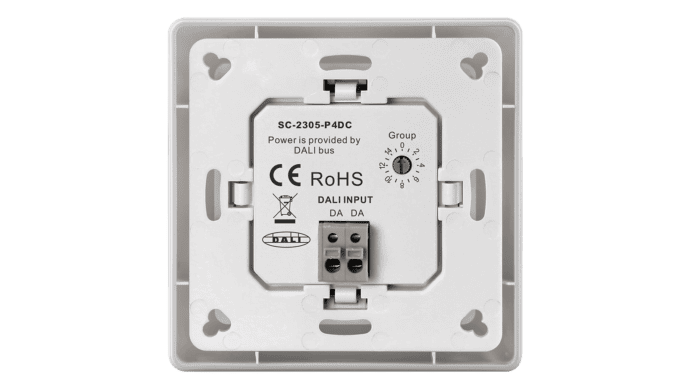

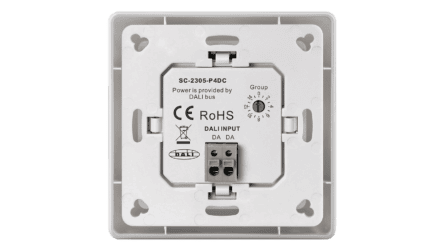

DALI DT6 push-button switch, single color, wall mounting, white
CHF 76.80 excl. VAT, plus shipping costs
Item no:
SC-2305-P4DC
Stock level:2 Available immediately
Description
DALI DT6 push-button switch for wall mounting suitable for all SR/SRP-2305 drivers/dimmers.
Application
- Single Color
Technical data
- Dimension: 71.2 x 71.2 x 13.6mm
- Color: white
- DALI DT6 push-button control
- Power supply via the DALI bus, no additional power supply required
- Each channel of the DALI bus can be equipped with several controllers
- Enables the selection and control of 4 DALI groups from a total of 16 DALI groups
- Compatible with universal 55mm frames
- IP20 Degree of protection
- Warranty: 5 years
Additional information
| LED operating elements | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| SC-2305-P4DC | PDF(315.02 KB) |
|---|
Accessories
-
SR-2305-192-CV-NFC
1 channel DALI / AC PUSH LED dimmer, NFC, constant voltage 12-48VDC, max. 384WCHF 53.407 Available immediately -
SRP-2305-10-C500-NFC
10W DALI2 DT6, AC-PUSH, constant current LED driver, 100-500mA, NFCCHF 29.9072 Available immediately -
SRP-2305-15-C700-NFC
15W DALI2 DT6, AC-PUSH, constant current LED driver, 100-700mA, NFCCHF 29.00Available to order -
SRP-2305-30-MULTIDIM-24V
30W DALI/Push+Triac+0/1-10V, 24Vdc constant voltage LED driverCHF 52.2055 Available immediately
