KSI SIMRING RETROFIT KIT, Ring LED Insert
CHF 57.20 - CHF 124.90
Description
LED retrofitting made easy – smart, efficient, and customized
Say goodbye to outdated lighting technology! With ourflexibleLED retrofitting solutions, youcaneasilytransformconventional luminaires into modern, efficient, and smart lighting systems –without costly renovations and at minimal expense.
Plug & Play: OurLED T5 and T8 replacement lamps as well asround, square, and ring-shaped LED modules comeready-madewith magnets, cabling, and power supply.
Premium light quality:Ra>90for natural, brilliant light in various color temperatures. No loss of efficiency thanks to the premium LEDs with KSF technology.
Smart & dimmable: Choose betweenDALI, Casambi, ZigBee, or classic non-dimmable variants. Our round and square LED modules are equipped with DALI power supplies as standard.
Tailor-made: Individual dimensions for almost any existing luminaire.
Why renovate now?
Up to 70% energy savingscompared to old light sources
Longer service life– less maintenance, greater cost-effectiveness
Smart Lighting Ready– perfect for IoT and building automation
Can be implemented immediately– no need for costly light fixture replacement
Technical data

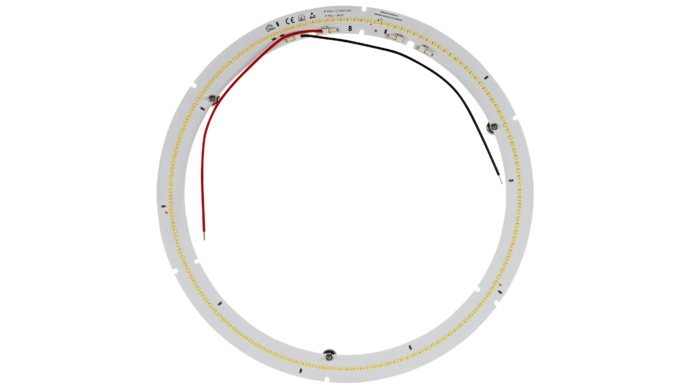

Ring-shaped LED insert with DALI power supply and magnets for quick conversion of existing conventional luminaires to LED
- Plug and play retrofit kits in various diameters from 230-379mm
- Replacement for Circline T5 40W and 55W
- Power supply unit selectable according to requirements such as CASAMBI, ZIGBEE etc.
- 3000 or 4000K with CRI >90, Tunable White 2700-6500K with CRI>90
- Quick and easy installation thanks to magnets
- Prepared with strands
- Power supply unit and module are provided with magnets
- Power supply unit and LED module are packed separately. Print still needs to be connected with attached cables (3000K = WW or 4000K = CW)
Additional information
| Retrofit LED inserts | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
||||||||
| LED refurbishment solutions | ||||||||
|
|
||||||||
| More | ||||||||
|
||||||||
Data sheets
| KSI230 | PDF(542.88 KB) |
|---|---|
| KSI305 | PDF(726.6 KB) |
| KSI379 | PDF(575.98 KB) |
Downloads
| LED MODULE CALCULATION 3.2 | Zip file (105.78 KB) |
|---|
