KSM SIMMOD RETROFIT KIT, Square LED insert
CHF 151.30 - CHF 877.00
Description
LED retrofitting made easy – smart, efficient, and customized
Say goodbye to outdated lighting technology! With ourflexibleLED retrofitting solutions, youcaneasilytransformconventional luminaires into modern, efficient, and smart lighting systems –without costly renovations and at minimal expense.
Plug & Play: OurLED T5 and T8 replacement lamps as well asround, square, and ring-shaped LED modules comeready-madewith magnets, cabling, and power supply.
Premium light quality:Ra>90for natural, brilliant light in various color temperatures. No loss of efficiency thanks to the premium LEDs with KSF technology.
Smart & dimmable: Choose betweenDALI, Casambi, ZigBee, or classic non-dimmable variants. Our round and square LED modules are equipped with DALI power supplies as standard.
Tailor-made: Individual dimensions for almost any existing luminaire.
Why renovate now?
Up to 70% energy savingscompared to old light sources
Longer service life– less maintenance, greater cost-effectiveness
Smart Lighting Ready– perfect for IoT and building automation
Can be implemented immediately– no need for costly light fixture replacement
Technical data

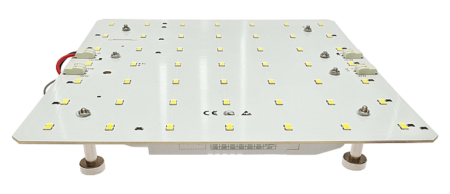

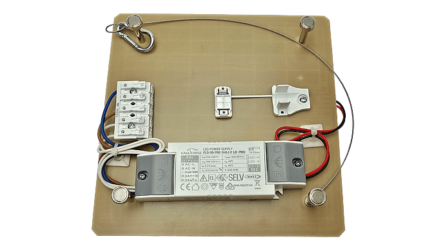

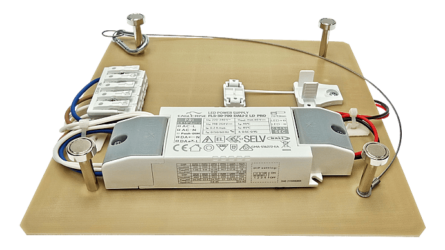

Square LED insert with DALI power supply unit and magnets for quickly converting existing conventional luminaires to LED
- Plug and play retrofit kits in various dimensions
- Power supply unit can be selected according to requirements such as CASAMBI etc., standard is always with DALI power supply unit
- 3000 or 4000K with CRI >90, Tunable White 2700-6500K with CRI>90
- Quick and easy installation thanks to magnets
- With connection terminal, strain relief and drop protection
Additional information
| Retrofit LED inserts | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| LED refurbishment solutions | ||||||
|
|
||||||
| More | ||||||
|
||||||
Data sheets
| KSM200X200 | PDF(998.83 KB) |
|---|---|
| KSM290X290 | PDF(1.01 MB) |
| KSM320X320 | PDF(1.3 MB) |
| KSM400X400 | PDF(1.08 MB) |
| KSM440X440 | PDF(1.07 MB) |
| KSM495X495 | PDF(1.15 MB) |
| KSM590X590 | PDF(1.29 MB) |
| KSM800X800 | PDF(1.16 MB) |
Downloads
| LED MODULE CALCULATION 3.2 | Zip file (105.78 KB) |
|---|
