LED heat sink

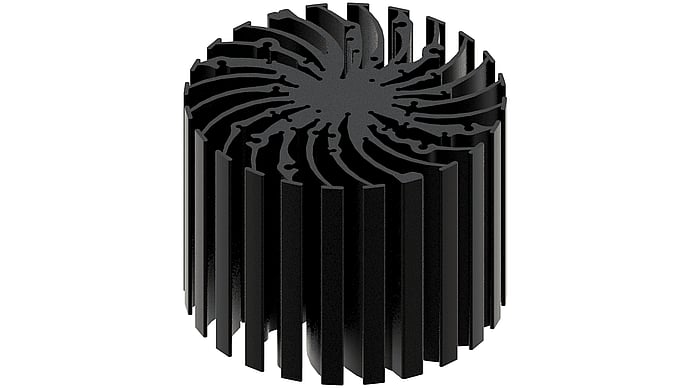

Modular LED star heat sink, ø134mm, H 100mm, Black anodized
CHF 73.20 excl. VAT, plus shipping costs
Item no:
MODULED MEGA 134100
In stock: Available to order
Description
- Modular passive LED star cooler
- Mounting holes for Zhaga book 3, 36 mounting holes for all LED COB brands
- all LED COB brands
- Dimensions: ø134mm - H100mm
- Rth 0.67°C/W
- Cooling capacity 7200 - 14300lm
- Black anodized
Additional information
| LED heat sink | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
||||||||||
Data sheets
| Product_Brief | PDF(981.46 KB) |
|---|---|
| Thermal_Data | PDF(961.29 KB) |
| Drawing_Dimensions | PDF(1.23 MB) |
