LED dimmer
4 channel RF LED dimmer, RGBW, constant voltage 12-36VDC, max. 1152W
CHF 85.30 excl. VAT, plus shipping costs
Item no:

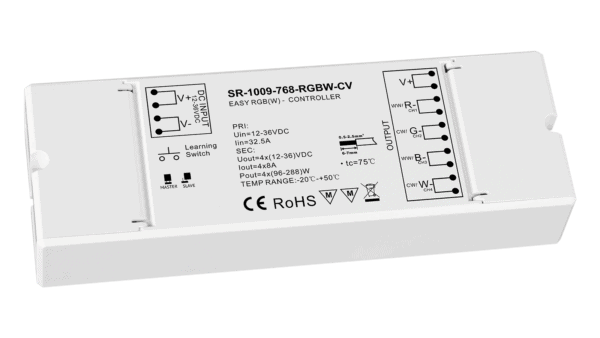

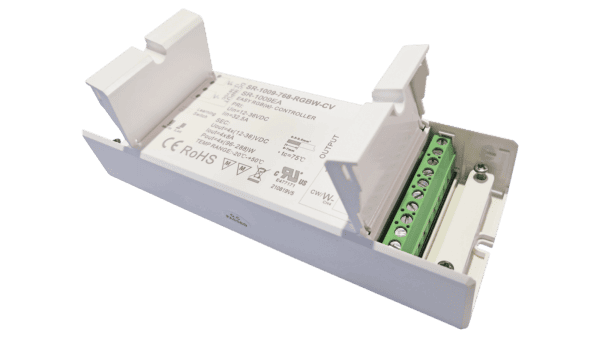

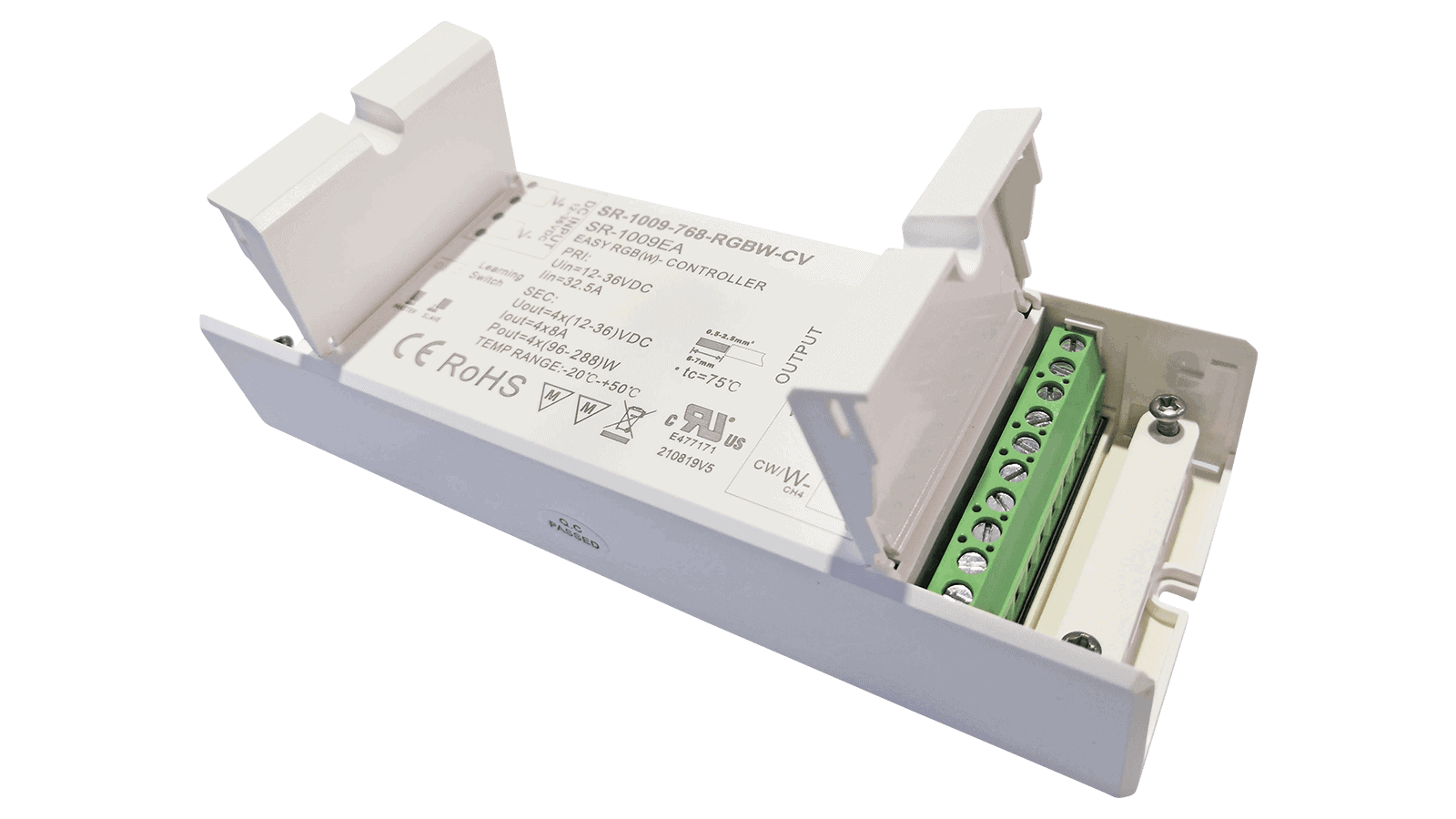

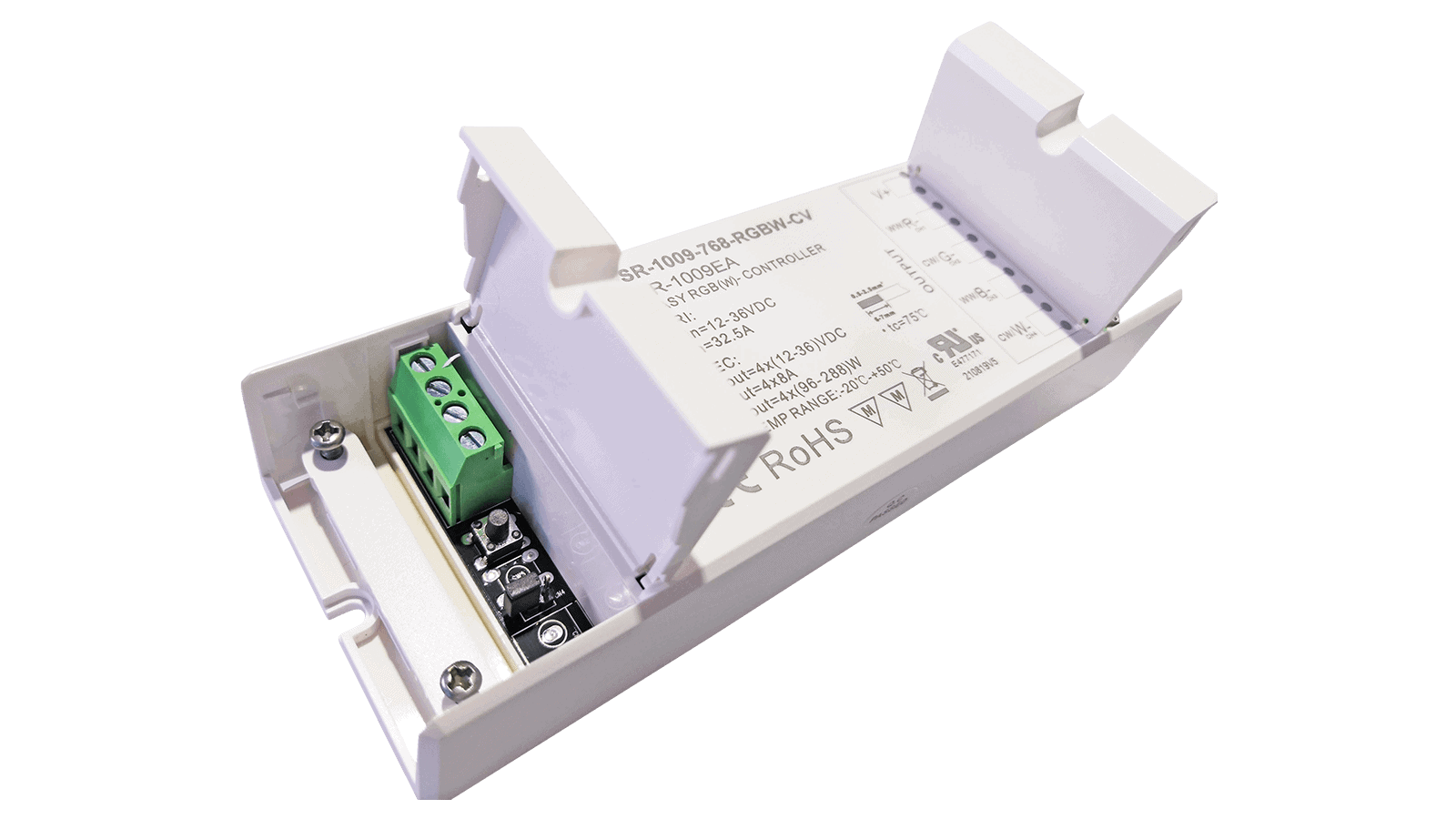

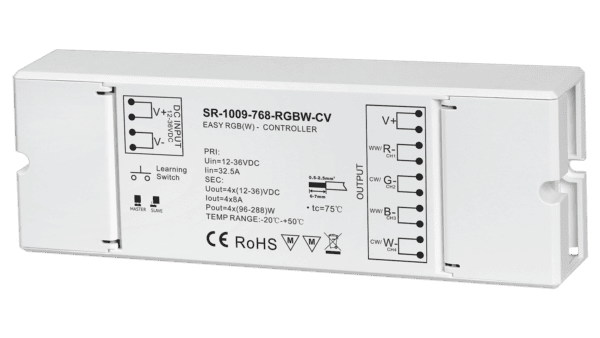

SR-1009-768-RGBW-CV
Stock:38 Available immediately
Description
SR-1009-768-RGBW-CV with PWM output and RF wireless interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.
Control
- RF Wireless (radio)
Application
- RGBW, RGB, Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- RF Wireless 4 CHANNEL DIMMER
- Can be used as RGBW, RGB, TW or single color control unit
- Max. Output current: 8A per channel
- Max. Output power at 24VDC: 768W
- With built-in repeater function for high performance
- Compatible with all remote controls in the SC-1009 series
- IP20 Degree of protection
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimension 170 x 59 x 29mm
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| SR-1009-768-RGBW-CV | PDF(354.59 KB) |
|---|
Accessories
-

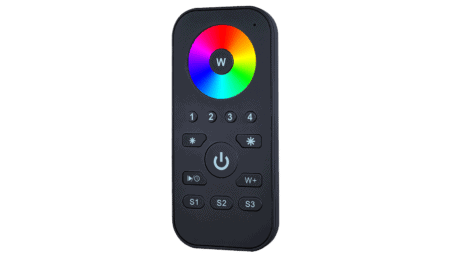

SC-1009-RGBW-W4
