LED cable

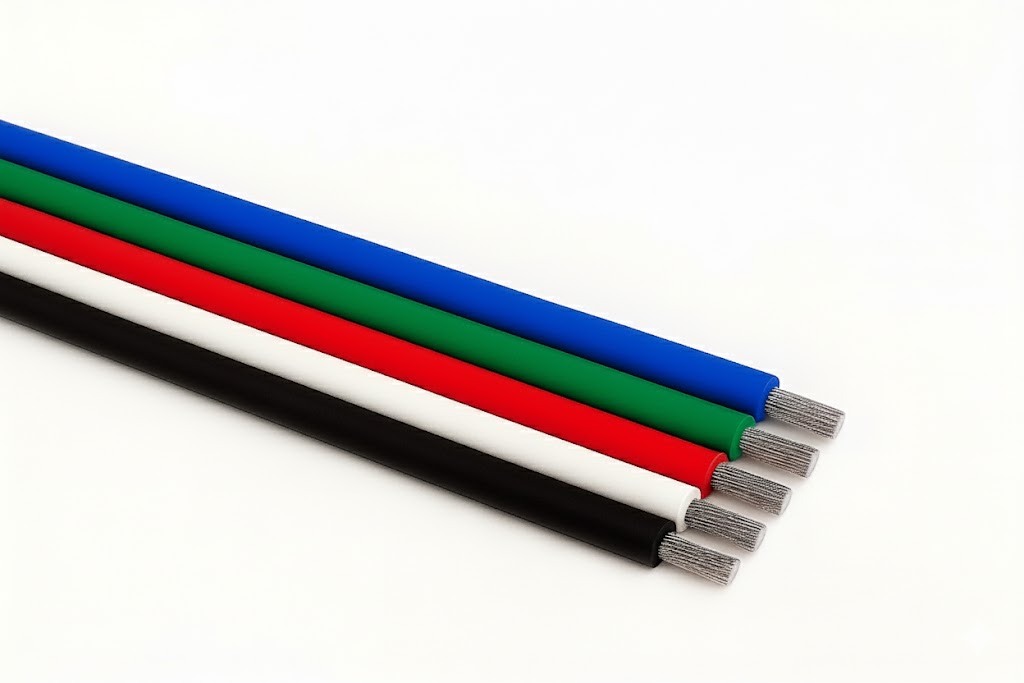

RGBW cable AWG20, SWRGB (reel = 305m)
CHF 396.00 excl. VAT, plus shipping costs
Item no:
CABLE1M-RGBW-AWG20
Stock level:16 Available immediately
Description
CABLE1M-RGBW-AWG20 flexible ribbon cable, color-coded. Suitable for RGBW LED applications such as LED strips.
Application:
- RGBW
1pc. = 1 roll à 305m
Technical data
- Strand construction: LiYY, tinned copper
- Cross-section: 5 x 0.5mm2/AWG20
- Core identification: black, white, red, green, blue
- Temperature range: -20 ... +80 °C
- Rated voltage: 300V
- Shielding: without shielding
- Application: Suitable for RGBW applications
- UL: UL 1007 (80°C 300V) / UL VW-1
- PU: 305m
Additional information
| LEDs | ||
|---|---|---|
|
||
Data sheets
Similar products
-
CABLE1M-R-0.5
Stranded wire 0.5mm2 red (roll = 200m)CHF 48.4010 Available immediately -
CABLE2M-TW-3X0.35-HF
Tunable White 3×0.35mm² cable with black sheath, halogen-free (roll = 200m)CHF 161.7020 Available immediately -
SRP-2309-75-PRO-CC
75W DALI DT8, 4in1, constant current LED driver 250-1500mACHF 113.7058 Available immediately -
SR-9101-600-RGBWW-CV
5 channel ZIGBEE 3.0 LED dimmer, RGBWW, constant voltage 12-48VDC, max. 1080WCHF 70.80Available to order -
SRP-2309-200-PRO-24V
200W DALI2 DT8, 4in1, 24Vdc constant voltage LED driverCHF 230.70Available to order -
SR-2309-100-RGBW-C700
4 channel, DALI DT8 LED dimmer, RGBW, constant current 700mA, max. 100WCHF 117.508 Available immediately -
CABLE2M-RB-2X0.35-HF
AWG22 cable with black sheath, conductor red+black (roll = 200m), halogen-freeCHF 113.407 Available immediately -
SIP-1007-RGBW-15-TV
Flexible IP67 neon LED strip / Topview / 15W / RGBWAvailable to order -
CABLE2M-RGBW-HF
RGBW cable with white jacket, halogen-free (roll = 200m)CHF 336.9010 Available immediately -

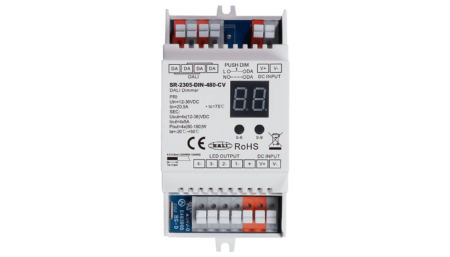

SR-2305-DIN-480-CV
