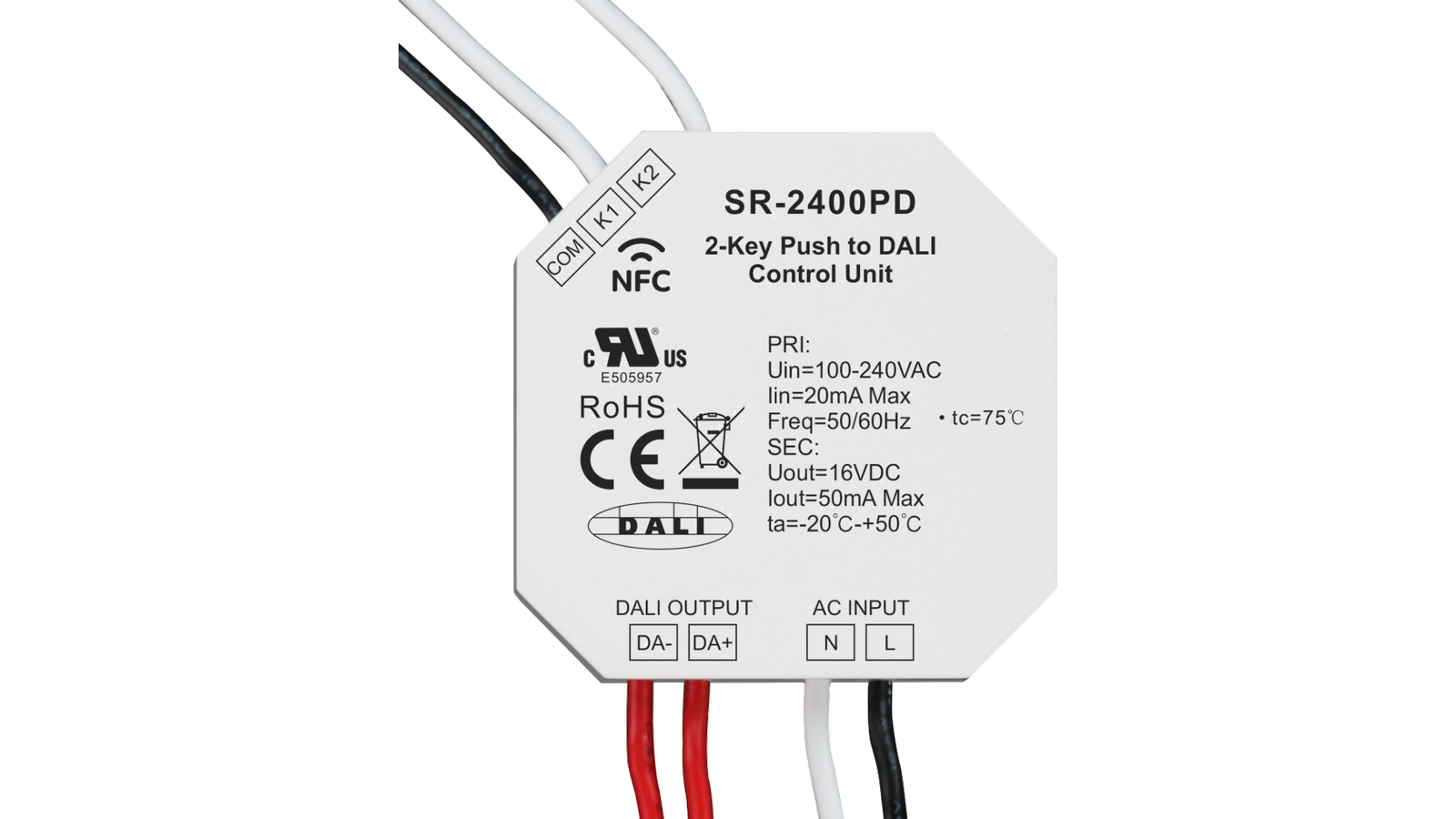

NFC-programmable 2-button control unit for DALI2 DT6/DT8

Description

• NFC-programmable 2-buttonPushbutton switch for DALI
• 2 channels for Pushbutton switch inputs or potentiometer inputs
• PD mode (Push Dim) with Pushbutton switch or CD mode (Corridor Dim) with potentiometer input
• PD mode or CD mode can be set via NFC
• Can function as a standalone DALI sensor when connected to potentiometer-based motion sensors and set to CD mode
• 100–240 VAC power supply (active mode) or DALI bus power supply (passive mode)
• Integrated 50-mA DALI bus power supply for controlling up to 25 DALI DT6/DT8 ballasts
• Up to 100 DALI ballasts can be controlled when 4 control units are connected to the AC mains
• DALI current consumption below 4 mA
• The type of DALI-controlled devices can be freely configured via the NFC app
• Supported device types: DT6, Tc, XY coordinates, RGBWAF
• The object Pushbutton switch by each Pushbutton switch can be freely configured via the NFC app
• Supports broadcast, individual address, and group control
• Each Pushbutton switch three different operating modes: short press, long press, and double-click
• The DALI command triggered by pressing a push button can be freely configured via the NFC app
• Multiple control units for multiple control points can be installed on each DALI line
• IP20
• Dimensions: 45.5 x 45 x 20.3
• Warranty: 5 years
