LED DALI and AC Phase-Cut Dimmer, 1 Channel, 230 VAC

Description

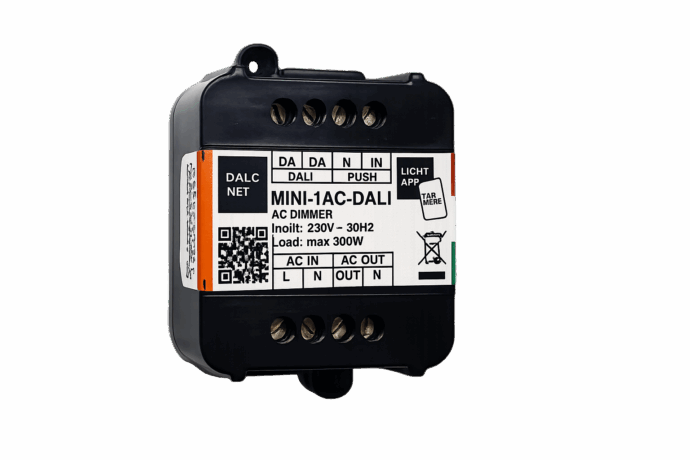

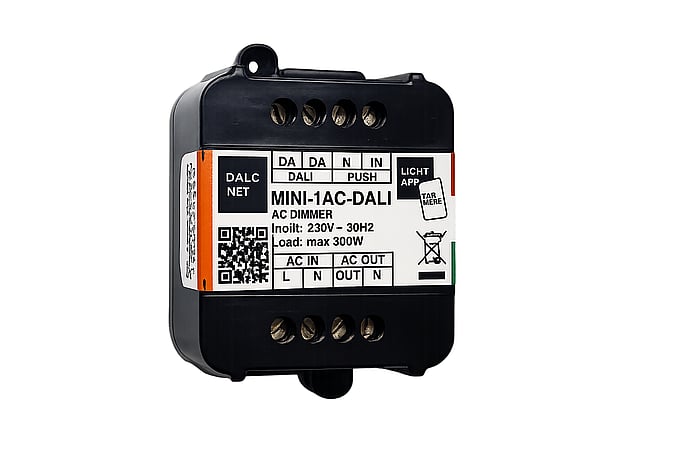

The MINI-1AC-DALI is a single-channel AC phase-cut dimmer that can be connected to a 230-V AC power supply and is suitable for controlling single-color AC loads such as incandescent and halogen lamps, switchable LED lamps, LED strips/lamps, and dimmable drivers in phase-cut mode. The MINI-1AC-DALI can be controlled via the digital DALI (Digital Addressable Lighting Interface) protocol or locally via a N.O. (Normally Open) pushbutton connected to the live wire, neutral wire, or as a potential-free contact. The wiring configuration is detected upon power-up, and the dimmer is automatically configured for operation with the connected control device. The AC dimmer is equipped with an internal 1-A fuse that protects the internal circuitry, making the installation of an external fuse optional. The maximum output current is 1.52 A, and it features the following protective functions: input fuse protection, output short-circuit protection, short-circuit detection, and detection of interruptions in the output circuit. Using the “Dalcnet LightApp©” mobile app and a smartphone equipped with Near Field Communication (NFC) technology, numerous parameters can be configured while the device is turned off, including the dimming curve, the maximum and minimum brightness levels, and the fade-in and fade-out times.

LightApp can be downloaded free of charge from the Apple App Store and Google Play Store.
