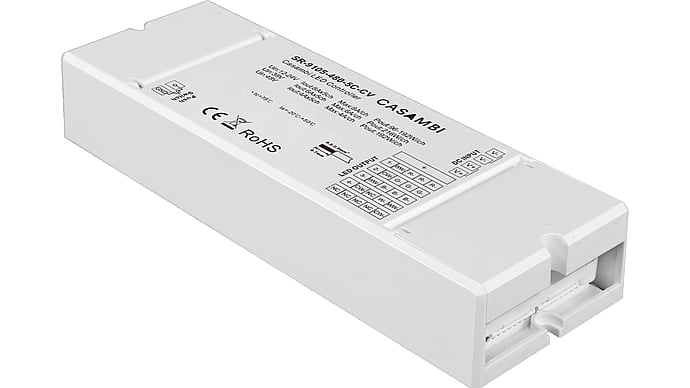

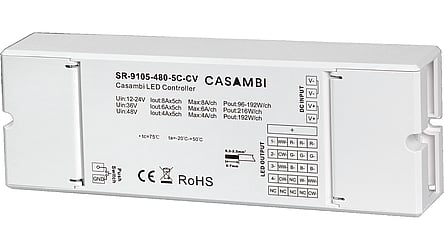

5-Channel CASAMBI LED Dimmer, RGBWW, Constant Voltage 12–48 VDC, Max. 960 W
CHF 98.40 excl. VAT, plus shipping costs
Description
The SR-9105-480-5C-CV 4-in-1 universal LED controller with CASAMBI interface is ideal for operating RGBW constant-voltage LED applications, such as LED strips. 4 different modes in one device => Single color dimming, Tunable White, RGBW, RGB+Tunable White.
Control
- CASAMBI
Application
- Single color dimming, Tunable White, RGBW, RGB+Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- 4-in-1 Universal CASAMBI LED Controller
- Input voltage: 12–48 VDC
- Maximum power: 960 W
- Can be used as an RGB-TW, RGBW, RGB, TW, or 4-channel single-color control unit
- PWM frequency: 1.5 kHz
- CASAMBI & LV Push Dimmer
- Max. output current: 5x8A (12V/24V)
- Max. output current: 5x6A (36V)
- Max. output current: 5x4A (48V)
- IP rating: IP20
- Dimensions: 170 x 59 x 29 mm
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| SR-9105-480-5C-CV | PDF(886.5 KB) |
|---|
