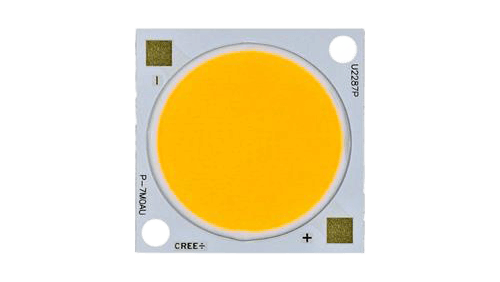

CREE COB, CMU2287 Pro9 SERIES, LES22
CHF 25.50 excl. VAT, plus shipping costs
Description
The XLamp® CMU LED family offers industry-leading performance in popular housing and LES sizes. The CMU family delivers up to 10% more LPW than the previous generation CMT family while maintaining mechanical and optical compatibility with CMT. XLamp CMU LEDs are optimized for high-quality indoor lighting applications, including track, spotlights and downlights, as well as outdoor lighting.
Pro9™ LEDs offer up to 15% higher efficiency with a color rendering index (CRI) of 90 and 95 compared to standard LEDs, without compromising color rendering quality. Pro9 LEDs feature the industry's highest operating temperature of 105°C and the same maximum current as standard versions. In addition, all Pro9 LEDs have the same mechanical and electrical characteristics as standard versions.
Technical data
- LES22mm light source
- Available with a minimum CRI of 90 and 95
- EasyWhite® 2- and 3-stage binning, available in Standard (on BBL), Premium, and Below BBL color options
- Forward voltage option: 54 V class
- 85 °C Binning and characterization
- Maximum drive current: 4320 mA
- 115° viewing angle, uniform color profile
- Solder connections on the top
- RoHS and REACH compliant
- UL®-certified component (E349212)
- PU=100 pcs.
Additional information
| COB | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| XLamp CMU2287 Pro9 | PDF(1.31 MB) |
|---|
Downloads
| XLamp CMU Step Files | Zip file (787.01 KB) |
|---|
Accessories
-
ZHAGA-LES22-HOLDER-V3
Zhaga bracket for Samsung COB LES22CHF 4.5048 Available immediately -
47.935.-302.56
Zhaga reflector medium 26°CHF 7.5028 Available immediately
