COB accessories

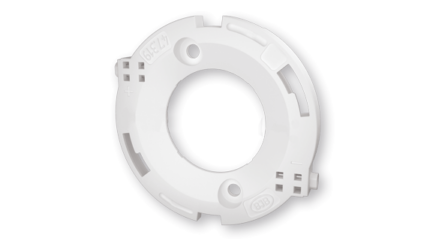

Zhaga bracket for Samsung COB LES22
CHF 4.50 excl. VAT, plus shipping costs
Item no:
ZHAGA-LES22-HOLDER-V3
Stock level:48 Available immediately
Description
- With integrated COB holder and interface for reflectors
- Easy handling thanks to pre-centering of the COB
- Screw fastening: for M3 screws with lock washer
- Max. Torque for screw fastening 0.5 Nm*
- Stripping length: 7-1 mm
- Please note the polarity of the LED
- Please refer to the LED manufacturer's specifications
- When connecting LED modules in series, the creepage and clearance distances of the individual modules must be designed for the total voltage of the series connection
*The maximum torque of the COB manufacturer must be observed

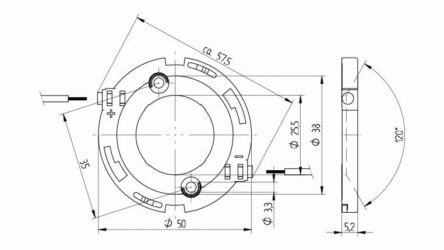

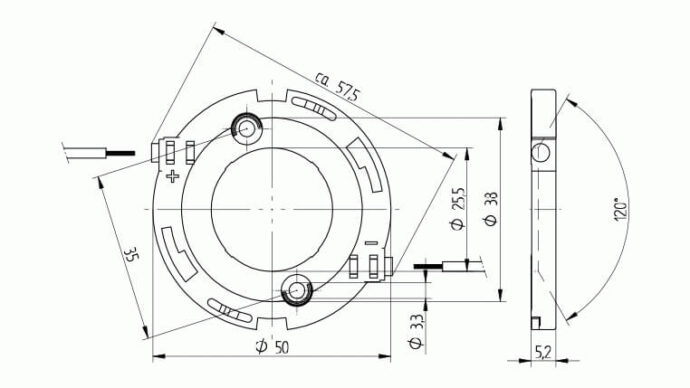

Technical data
- For COBs: 28 x 28mm
- LES: 22
- Diameter: 50mm
- Height: 5.2mm
- Material: Housing: PBT Contacts: CuSn
- Rating: 3A / 150 VDC
- Fastening type: Screw fastening for M3 screws with lock washer
- Operating temperature: max. 130°C
- Conductor cross-sections: 0.35-0.5mm²
- Suitable for Samsung:
LC040D /60D / 80D
Additional information
| LEDs | ||
|---|---|---|
|
||
Data sheets
| ZHAGA-LES22-HOLDER | PDF(222.99 KB) |
|---|
Downloads
| CAD data | Zip file (1.54 MB) |
|---|
Accessories
-
SPHWHAHDNK25YZT3D4
SAMSUNG COB, D SERIES, LC040D, GEN4, 4000K, CRI >80, 3SDCMCHF 9.3052 Available immediately -
SPHWHAHDNM271ZT3D4
SAMSUNG COB, D SERIES, LC080D, GEN4, 4000K, CRI >90, 3SDCMCHF 20.1069 Available immediately
