PCB Printed circuit board connector 0156-1Bxx-BK
CHF 502.90 - CHF 1'341.10
Description

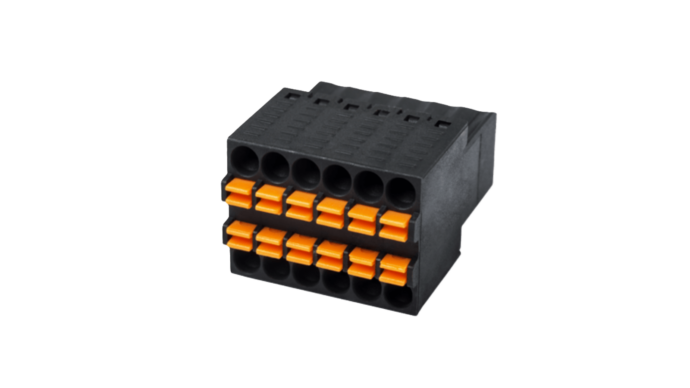

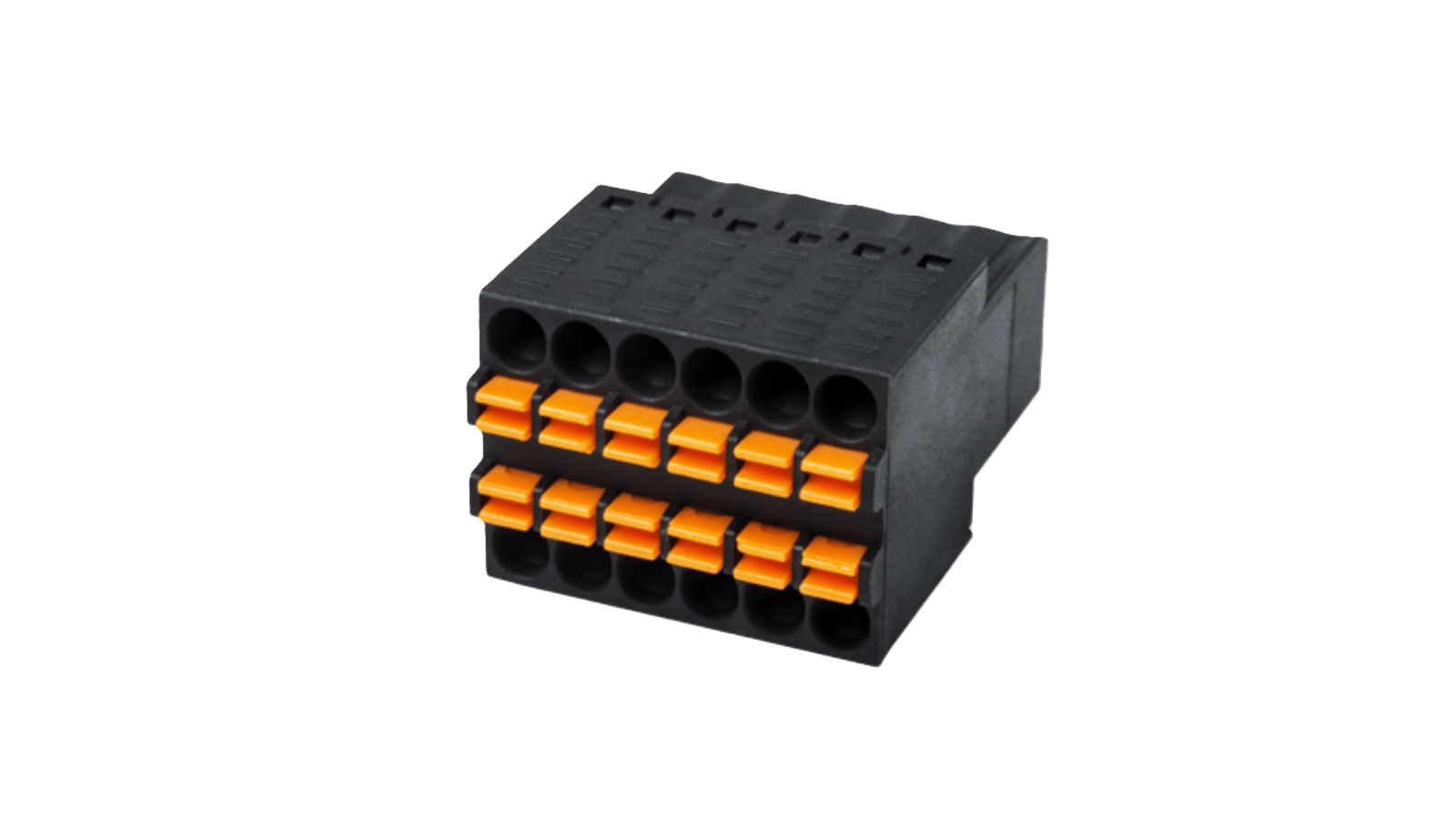

Printed circuit board (PCB) connector 0156-1Bxx-BK from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- Push-in design for simple and flexible conductor connection
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Terminal Connector - Plug, Push-in Design, Pitch: 2.54mm, 150V, 5A
Category: PCBConnector - Plug (Plug)
Pitch: 2.54mm
Color: black
Connection type: Push-in design
Locking type: without

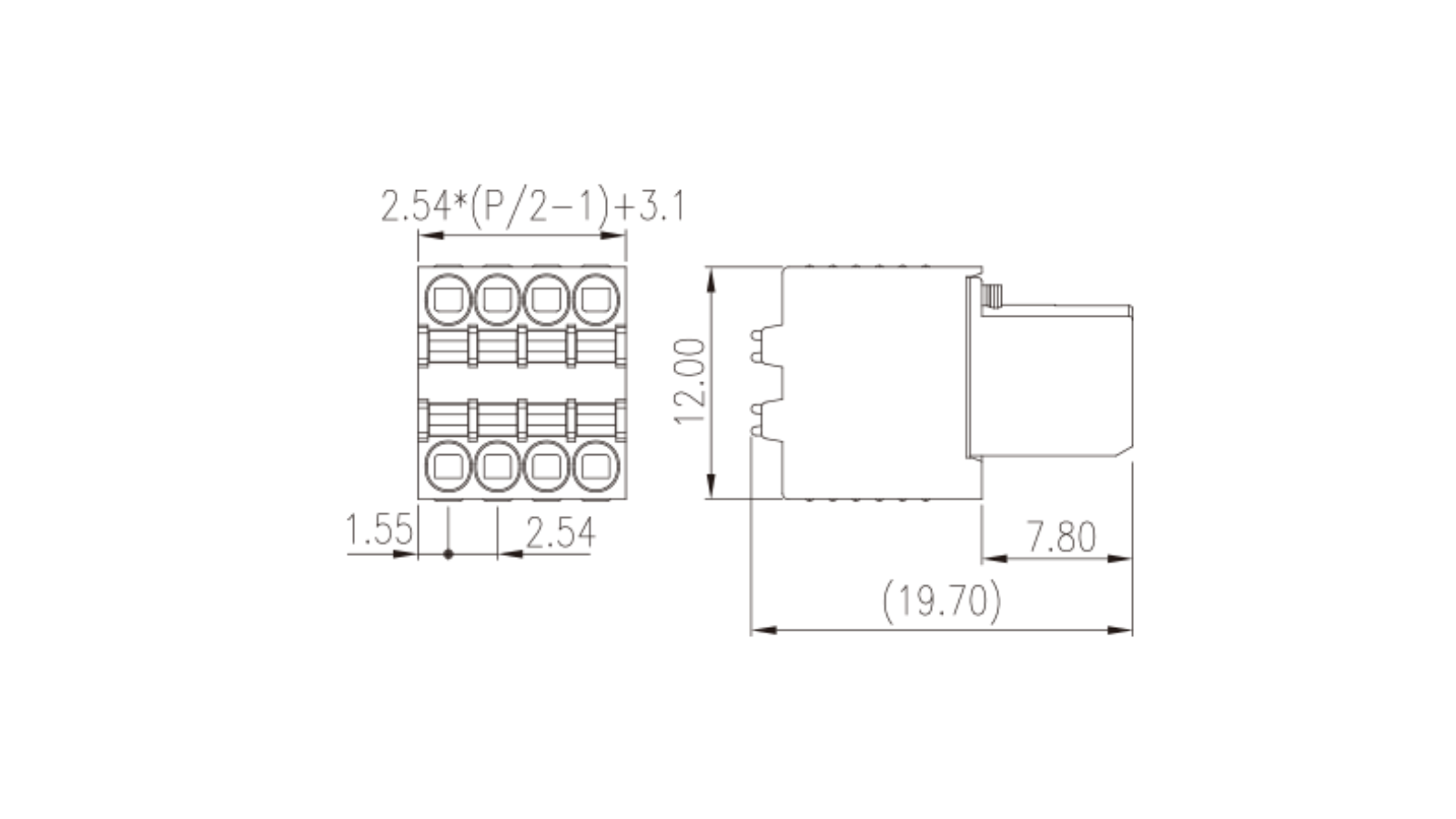

Length (mm): 2.54*(P/2-1)+3.1
Width (mm): 12.0
Height (mm): 19.7
Number of poles: 06P~44P
Level: Double level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 0156-1Bxx-BK | PDF(294.55 KB) |
|---|
