PCB PCB connection socket 0159-32xx
CHF 59.70 - CHF 288.00
Description

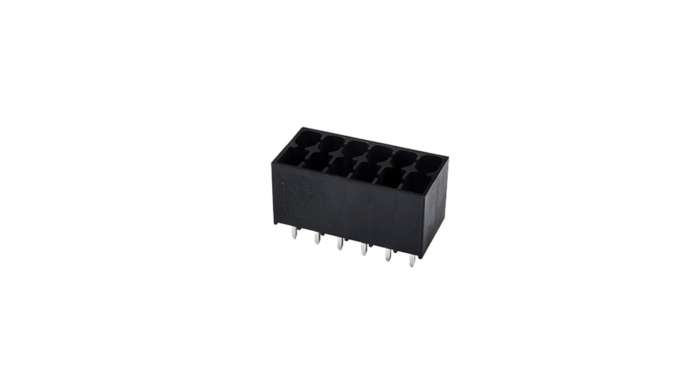

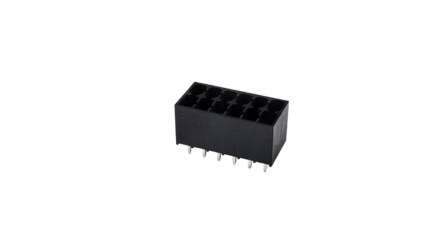

Printed circuit board (PCB) connector socket 0159-32xx from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 4-40 poles
- Grid 3.50 mm
- Black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector-Socket, Wave soldering, Pitch: 3.50mm, 150 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.50 mm
Color: black
Interlock type: without
Soldering method: Wave soldering

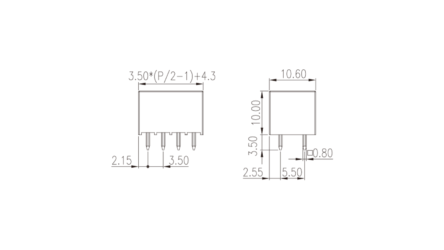

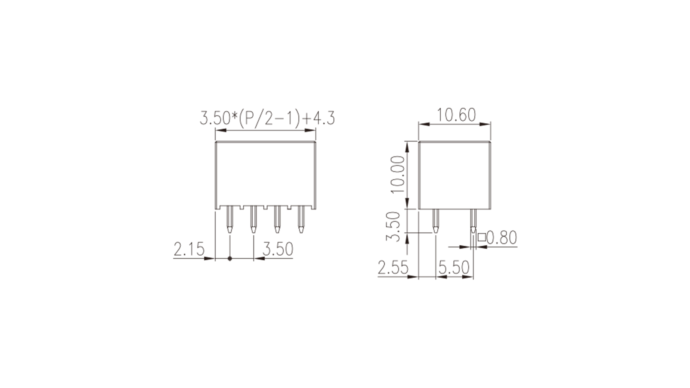

Length (mm): 3.50*(P/2-1)+4.3
Width (mm): 10.6
Height (mm): 10
Pin dimensions (thickness x width): 0.8 x 0.8
PCB hole diameter (mm): 1.4
Number of poles: 04P~40 P
Level: Double level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 0159-32xx | PDF(249.33 KB) |
|---|
