PCB Printed circuit board connector 5ESDV-xxP
CHF 79.70 - CHF 757.00
Description

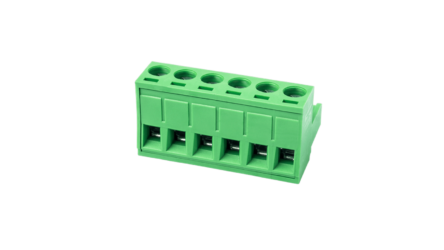

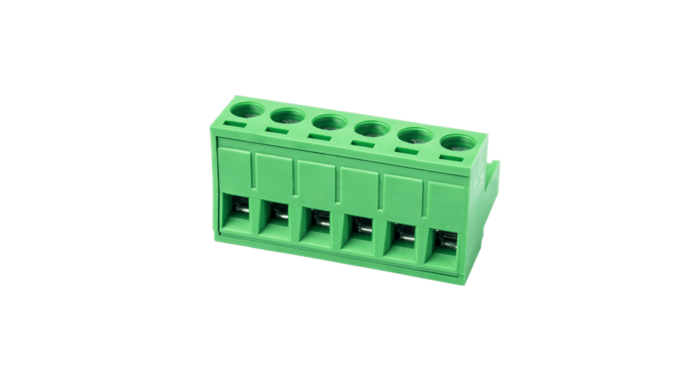

Printed circuit board (PCB) connector 5ESDV-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector 2-24 poles
- Screw connection
- Grid 5.0 mm
- Color green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Connector, Screw Connection, Pitch : 5.0 mm, 300 V, 15 A
Category: PCBConnector - Plug
Pitch: 5.0 mm
Color: green
Connection type: Screw connection
Locking type: without

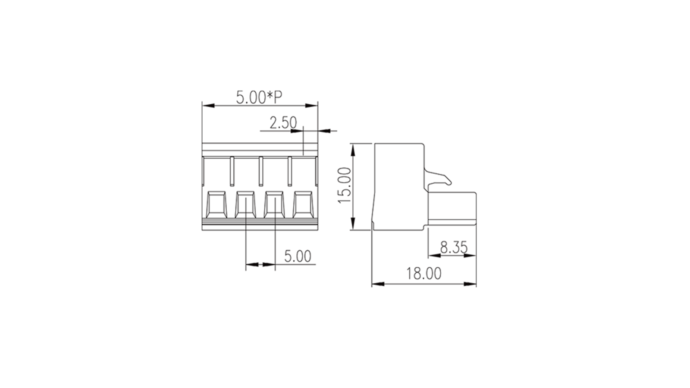

Length (mm): 5.00*P
Width (mm): 18
Height (mm): 15
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 5ESDV-xxP | PDF(310.39 KB) |
|---|
