PCB PCB connection socket ECH350V-xxP
CHF 25.00 - CHF 299.50
Description

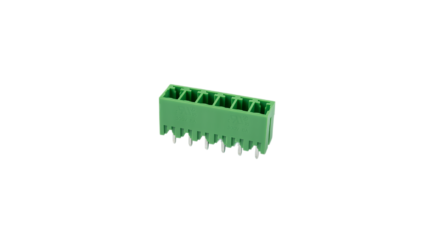

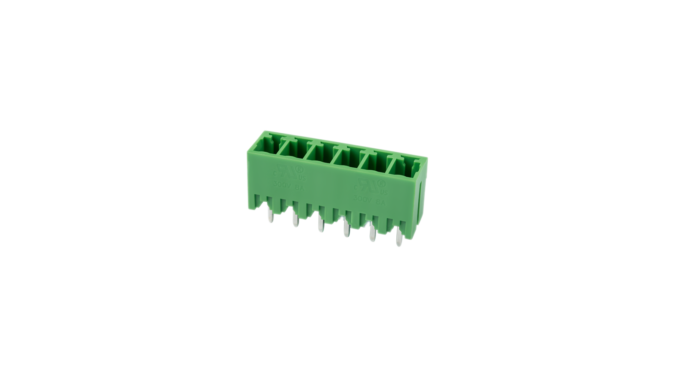

Printed circuit board (PCB) connector socket ECH350V-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-24 poles
- Grid 3.50mm
- Green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Connector - Socket, Wave soldering, 3.50 mm pitch, 300 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.50mm
Color: green
Interlock type: without
Soldering method: Wave soldering

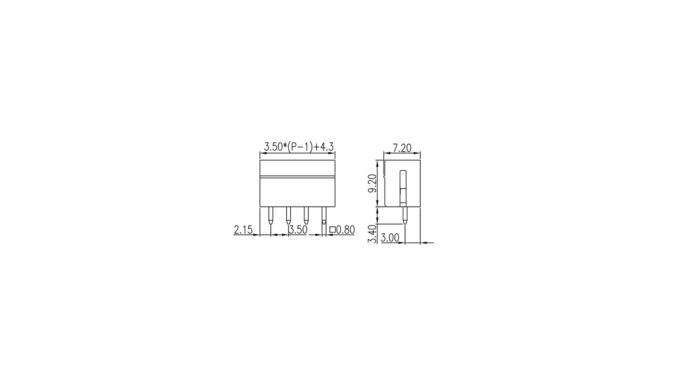

Length (mm): 3.50*(P-1)+4.3
Width (mm): 7.2
Height (mm): 9.2
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| ECH350V-xxP | PDF(265.63 KB) |
|---|
