PCB Printed circuit board connector 0221-24xx
CHF 153.60 - CHF 214.55
Description

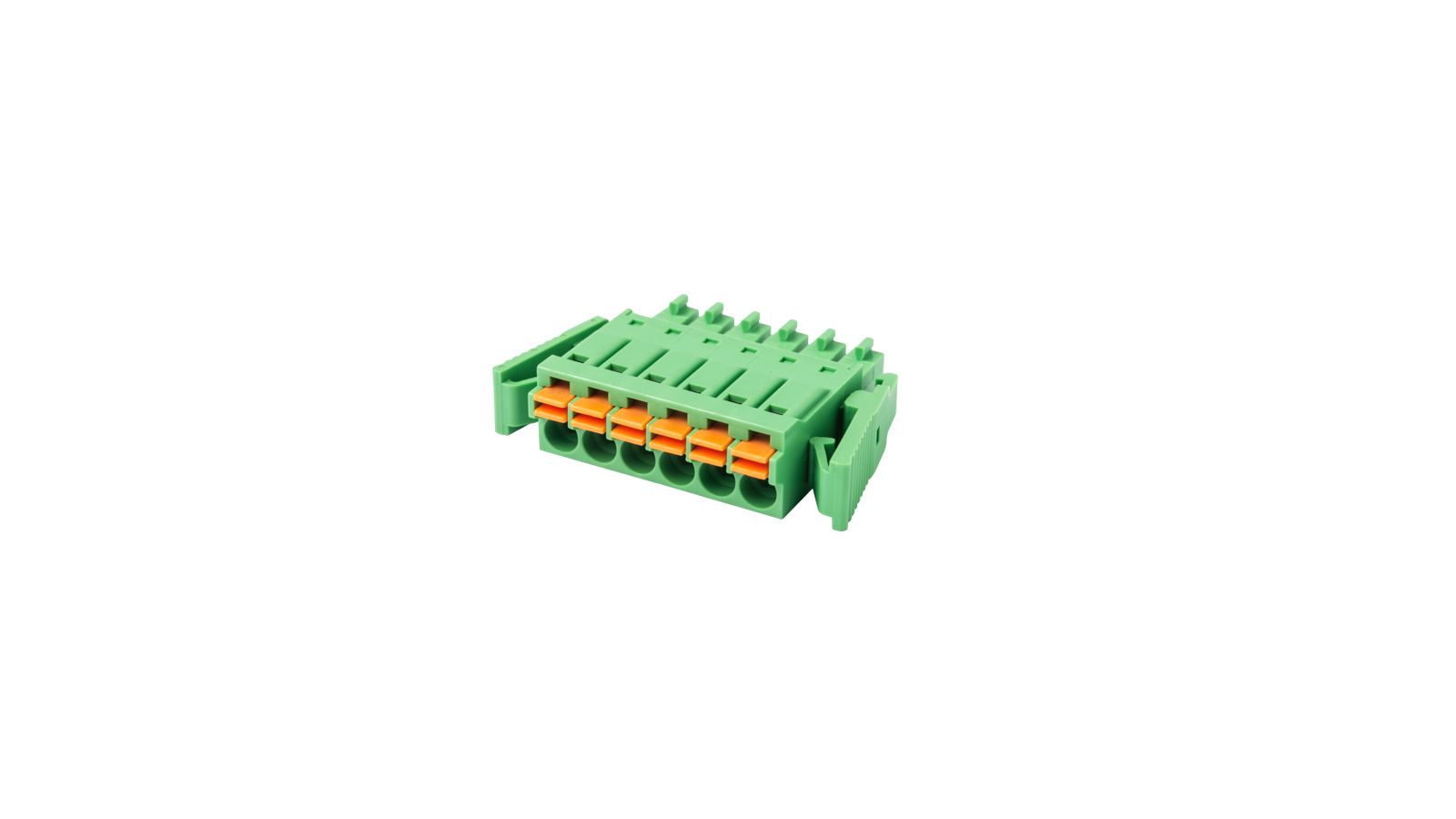

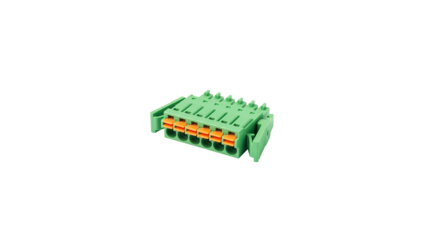

Printed circuit board (PCB) connector 0221-24xx from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector plug 2-20 poles
- Grid 3.50 mm
- Push-In
- green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - plug, push-in design, pitch: 3.50 mm, 300 V, 8 A
Category: PCBConnector - Plug (Plug)
Pitch: 3.50 mm
Color: green
Connection type: Push-in design
Locking type: with snap lock

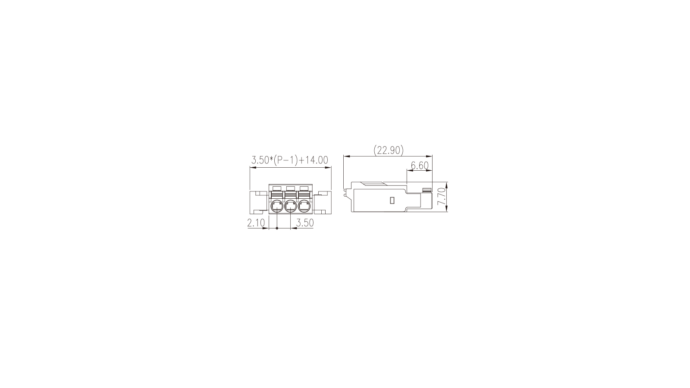

Length (mm): 3.50*(P-1)+14.0
Width (mm): 7.7
Height (mm): 22.9
Number of poles: 02P~20 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 0221-24xx | PDF(313.2 KB) |
|---|
