PCB Circuit board connection block EK500V-xxP
CHF 61.00 - CHF 245.80
Description

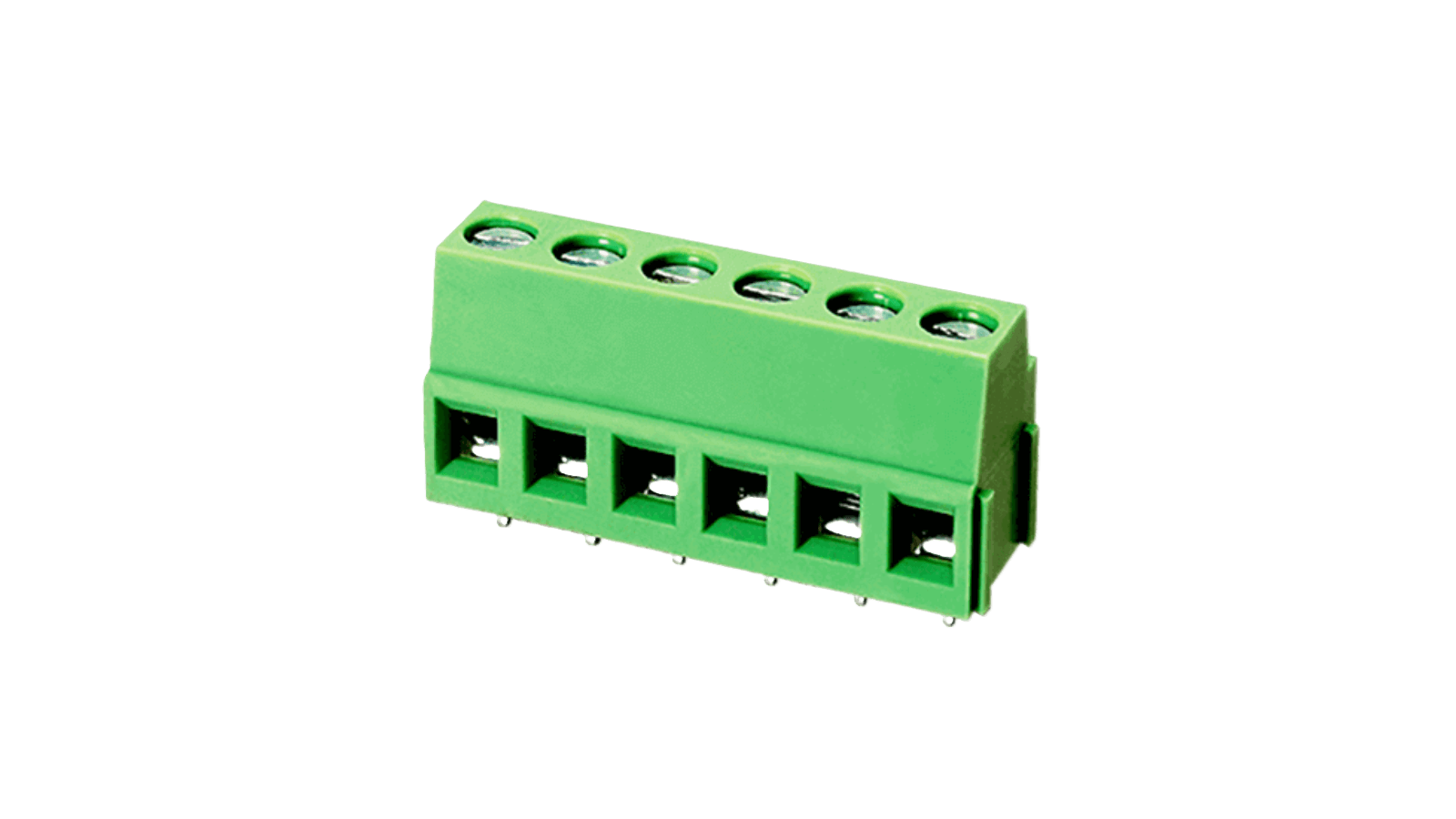

Printed circuit board (PCB) connection block EK500V-xxP from DINKLE
The PCB connection blocks from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector plug 2~48 poles
- Grid 5.00mm
- Color green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Terminal Block - screw connection, 5.00 mm pitch, M2.5, 300V, 20A
Category: PCB terminal block (PCB terminal block)
Grid: 5.00 mm
Color: green
Connection type: Screw connection
Locking type: without

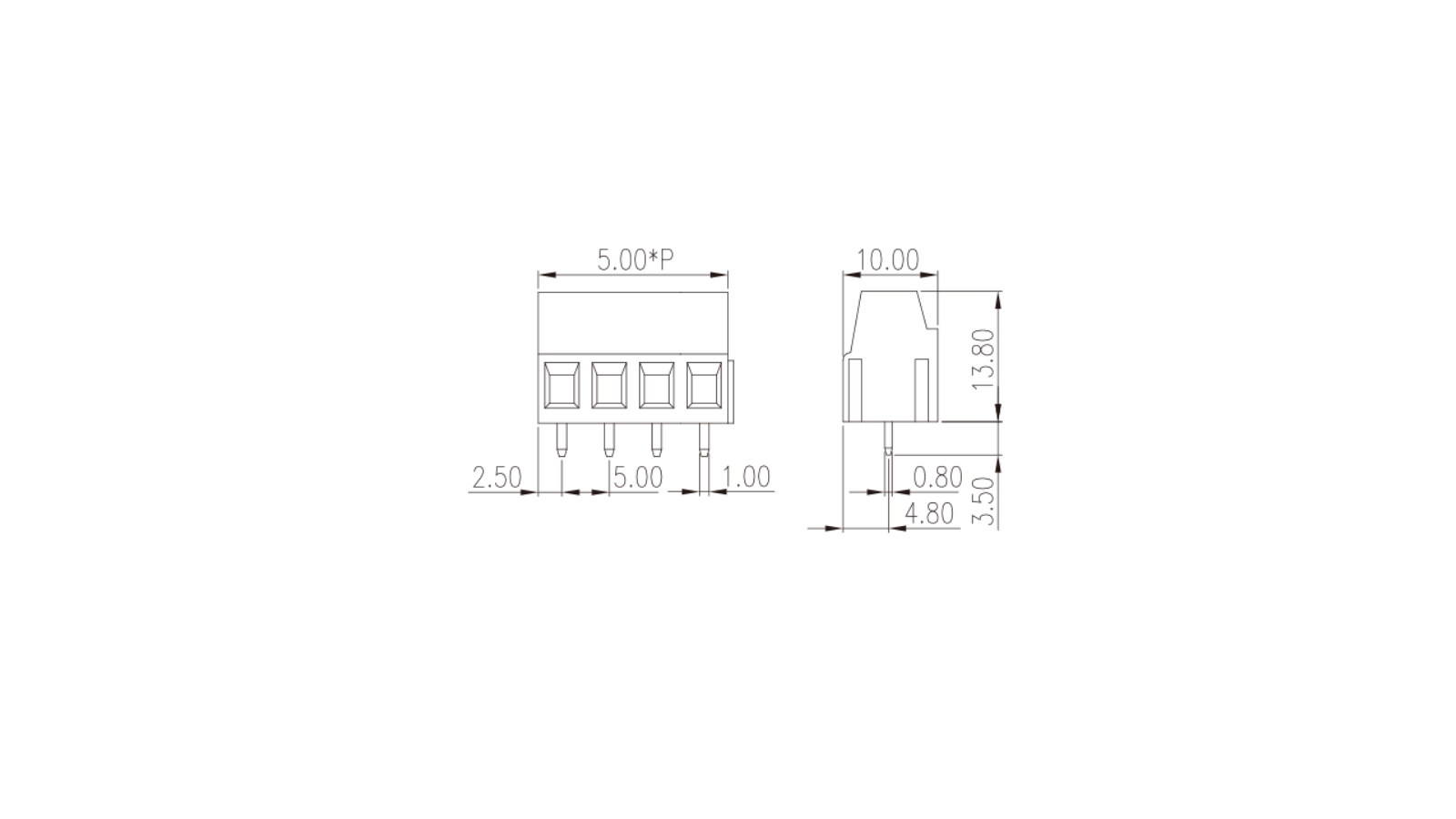

Length (mm): 5.00*P
Width (mm): 10
Height (mm): 13.8
Pin dimensions (thickness x width): 0.8 x 1.0

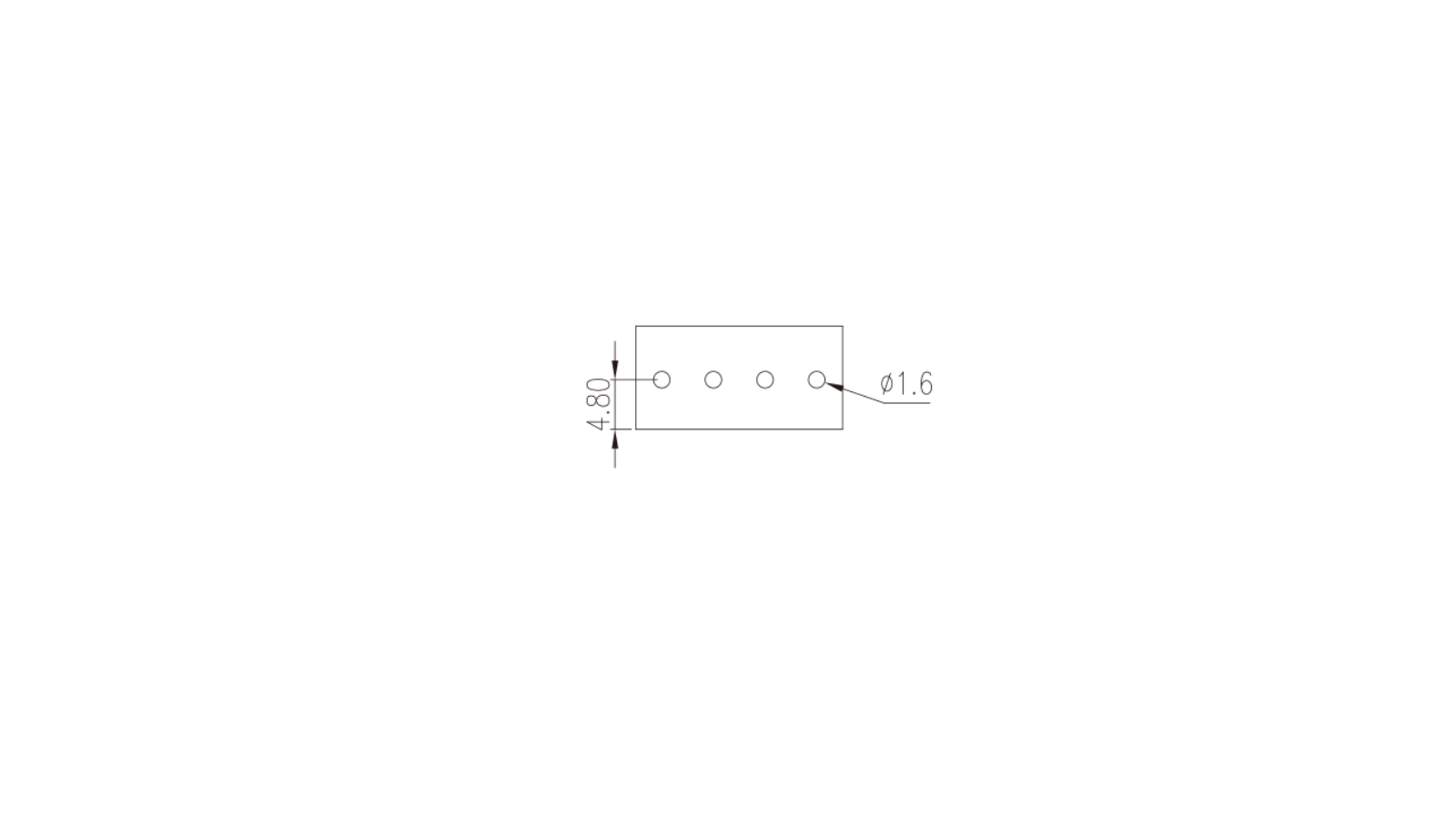

PCB hole diameter (mm): 1.6
Number of poles: 02P~48 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| EK500V-xxP | PDF(344.29 KB) |
|---|
