PCB Printed circuit board connection block 0177-33xx
CHF 93.60 - CHF 374.40
Description

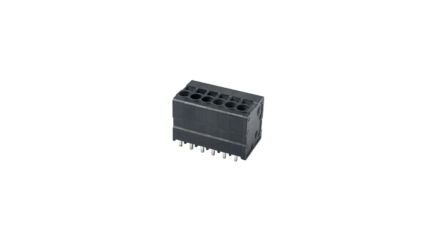

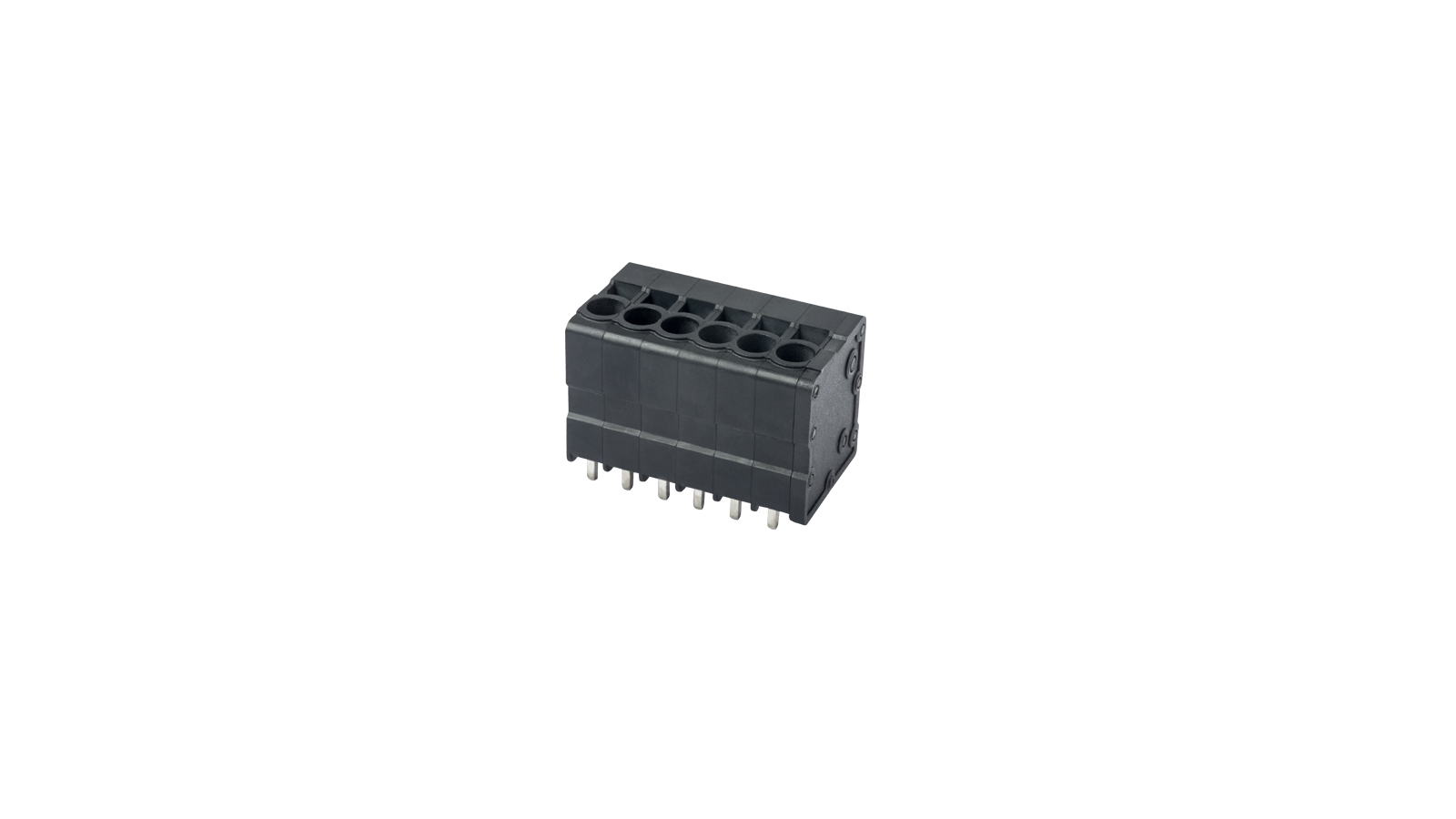

Printed circuit board (PCB) connection block 0177-33xx from DINKLE
The PCB connection blocks from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector 2-24 poles
- Grid 3.50mm
- Color black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Terminal Block - Push-In, Wave Soldering, 3.50 mm pitch, 300V, 10A
Category: PCBTerminal Block
Grid: 3.50 mm
Color: black
Connection type: Push-in
Interlocking type: without

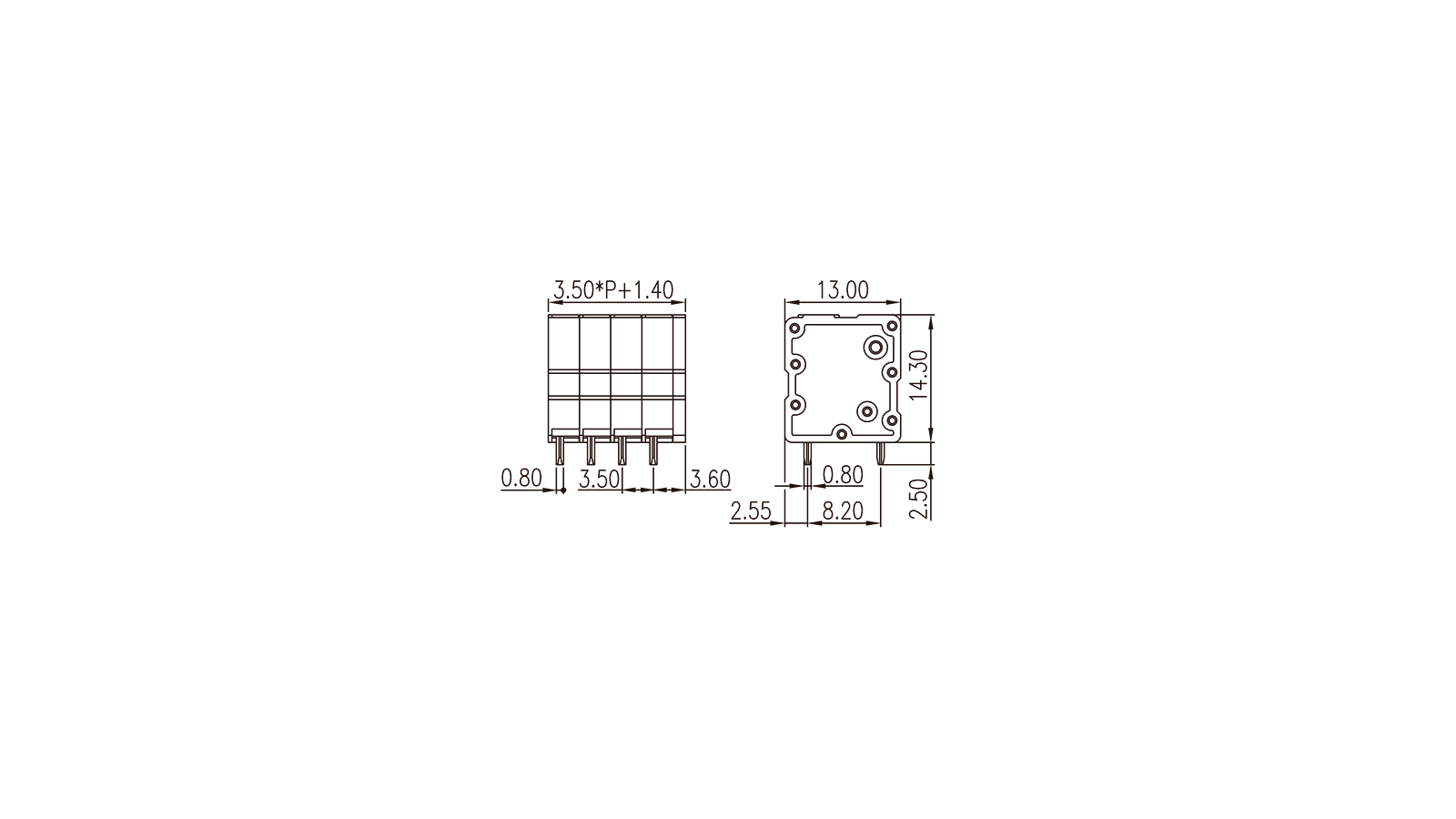

Length (mm): 3.50*(P-1)+4.9
Width (mm): 13
Height (mm): 14.3

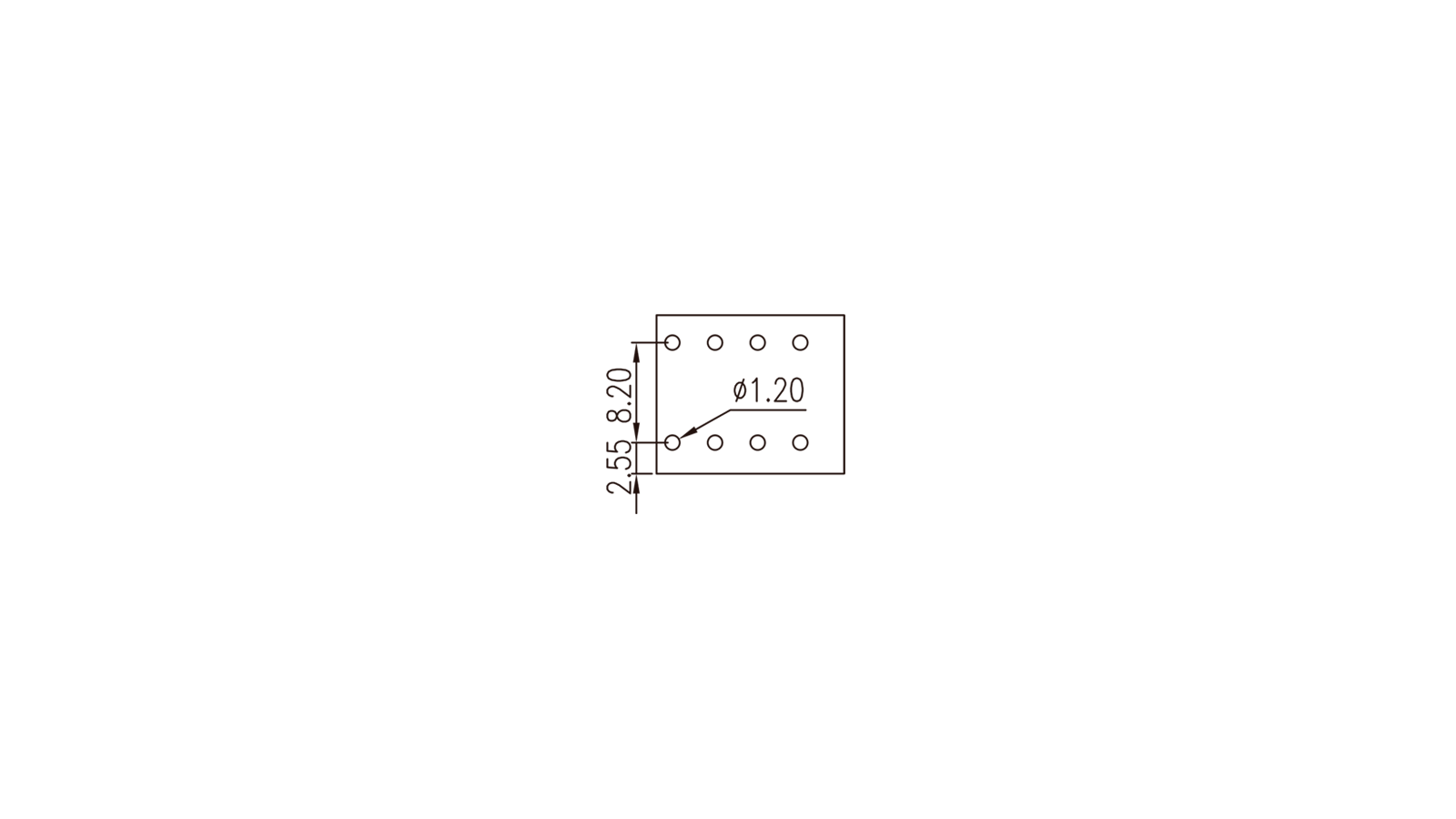

Pin dimensions (thickness x width): 0.8×0.8
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 0177-33xx | PDF(308.28 KB) |
|---|
