Printed circuit board connectors
PCB terminal block DG2216V
Selling price (UK) per 1 piece
CHF 10.00 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
50
Description

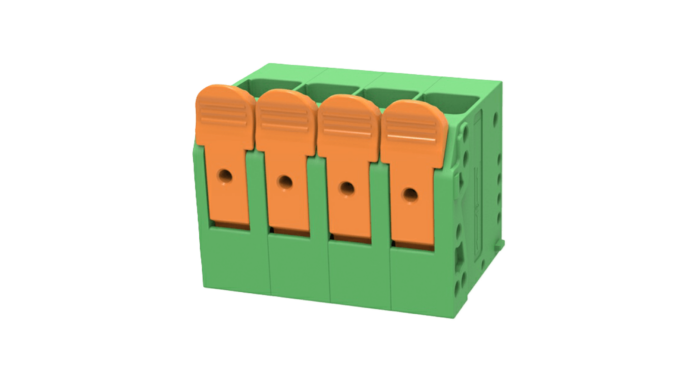

Printed circuit board terminal DG2216V from DEGSON
- PCB connector 2-12 poles
- Grid 10.0 mm
- Color green
Other unpublished standard products and customized versions from DEGSON on request.
Technical data
Designation: PCB connection block
Connection type: Push-in
Grid: 10.0 mm
Color: green
Soldering process: Wave soldering
For cable diameter: 16 mm2
Nominal voltage: 1'000V
Nominal current: 76A
Number of poles: 02P~24 P
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| Drawing DG2216V | PDF(227.62 KB) |
|---|
