Printed circuit board connectors
PCB terminal block DG2216R
Selling price (UK) per 1 piece
CHF 10.00 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
50
Description

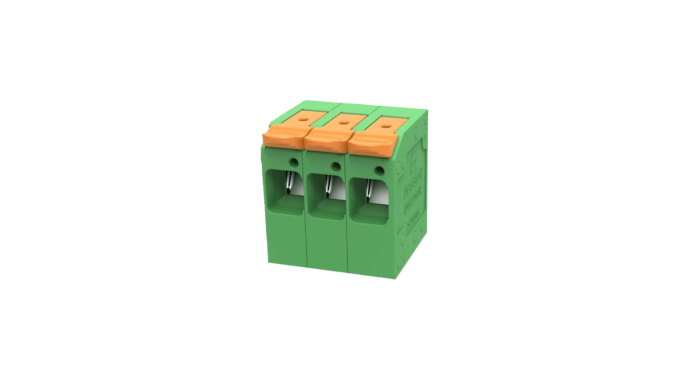

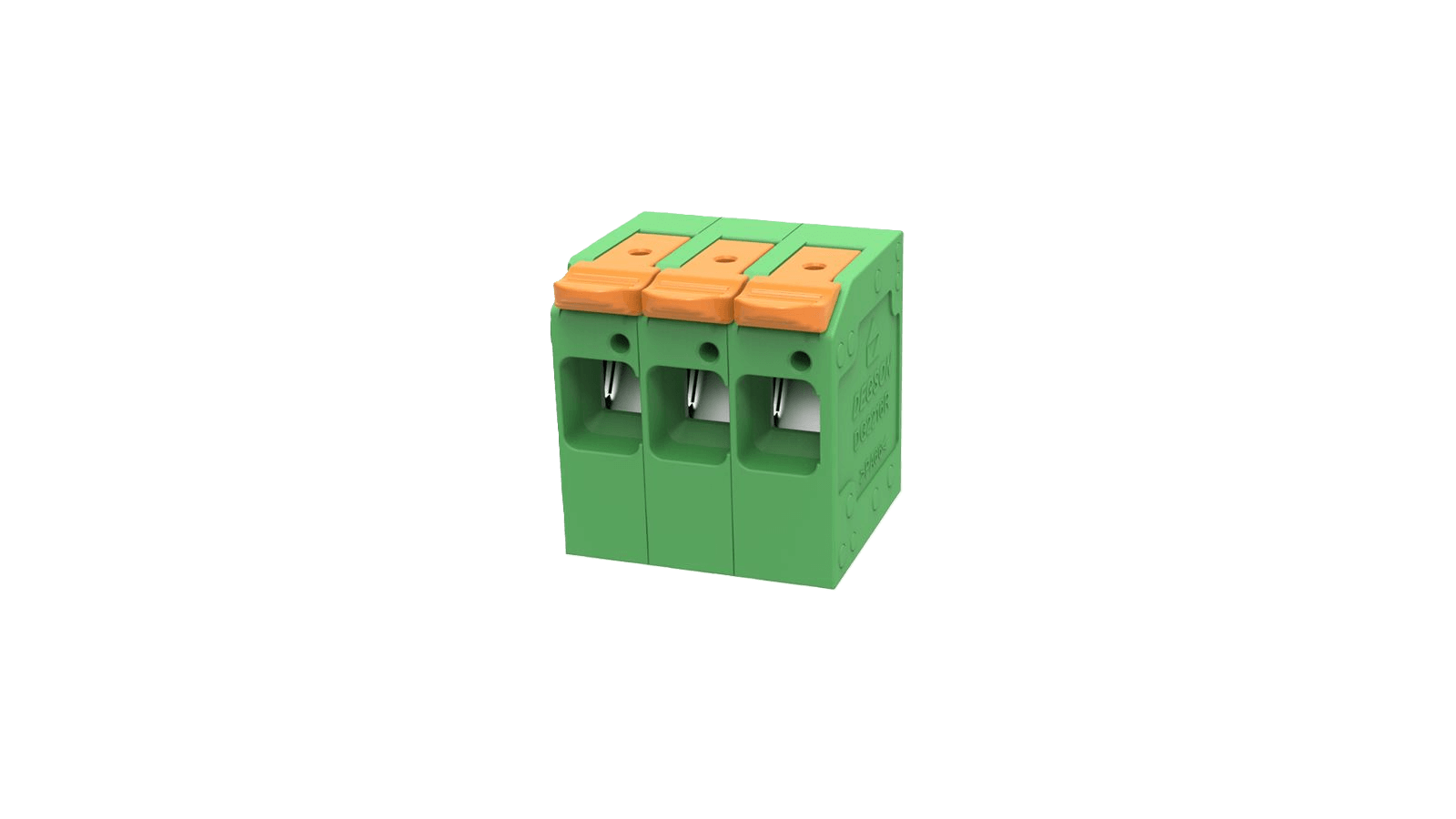

Printed circuit board terminal DG2216R from DEGSON
- PCB connector 2-12 poles
- Grid 10.0 mm
- Color green
Other unpublished standard products and customized versions from DEGSON on request.
Technical data
Designation: PCB connection block
Connection type: Push-in
Grid: 10.0 mm
Color: green
Soldering process: Wave soldering
For cable diameter: 16 mm2
Nominal voltage: 1'000V
Nominal current: 76A
Number of poles: 02P~12 P
Subject to errors and technical changes
