Printed circuit board connectors
PCB connection terminal DG137T-15.0
Selling price (UK) per 1 piece
CHF 10.00 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
50
Description

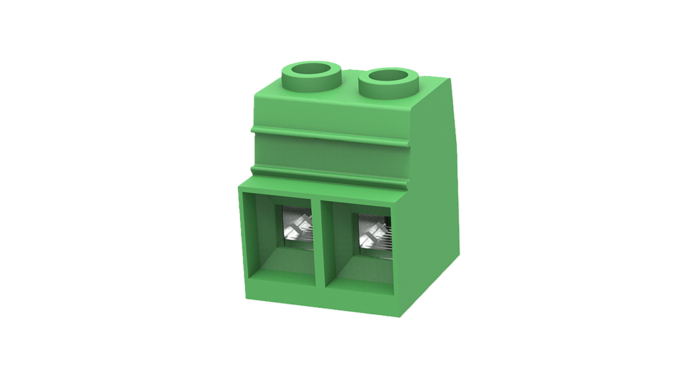

Circuit board terminal DG137T-15.0 from DEGSON
- PCB connector plug 2-9 poles
- Grid 15.0 mm
- Color green
Other unpublished standard products and customized versions from DEGSON on request.
Technical data
Designation: PCB connection block
Connection type: Screw
Grid: 15.0 mm
Color: green
Soldering method: Wave soldering
For cable diameter: 4-35 mm2
Nominal voltage: 1'000V
Nominal current: 115A
Number of poles: 02P~09 P
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| Drawing DG137T-15.0 | PDF(180.31 KB) |
|---|
