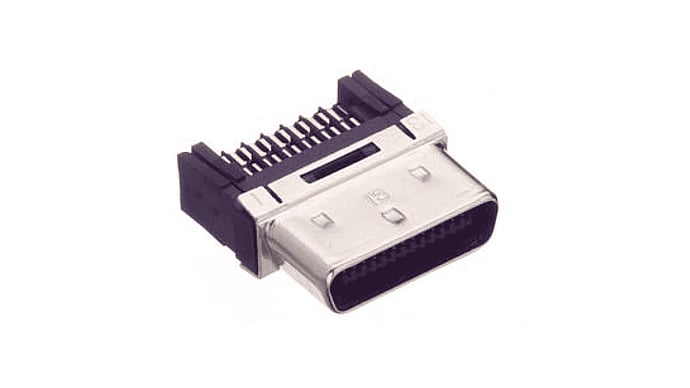

HTK solder plug connector HDR-E14MSG1+
CHF 36.80 excl. VAT, plus shipping costs
Description
Solder connector HDR-E14MSG1+ from HTK (Honda Tsushin Kogyo)
The HDR series connectors are very small interface connectors (SMT) with a contact spacing of 0.8mm. They are designed so that they can be used on printed circuit boards (PCB) to save as much space as possible.
- Compact and robust
- Various versions
- Industry camera standard compatible
- Supports EMI/ESD
- High durability
- Supports high-speed transmission
Further, unpublished products and designs from HTK (Honda Tsushin Kogyo) on request.
Technical data
Execution: Solder connector
Connection: Soldering
Number of poles: 14
Grid dimension: 0.8mm,
Shielding: Metal
Nominal voltage: 125V AC
Rated current: 0.5A
Insulation resistance: >100MOhm at 250V DC
Dielectric strength: 350V AC (r.m.s.)
Contact resistance: 70 mOhm or less
Coating: 0.76μm gold or thicker
Additional information
| LEDs | ||
|---|---|---|
|
||
| More | ||
|
||
Data sheets
| HDR-E14MSG1+ (Japanese) | PDF(442.33 KB) |
|---|---|
| HDR Series (English) | PDF(5.05 MB) |
