M8 plug connector socket for overmolding SZ SIGNAL
CHF 3.85 - CHF 4.00
Description

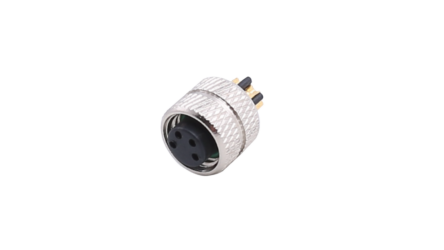

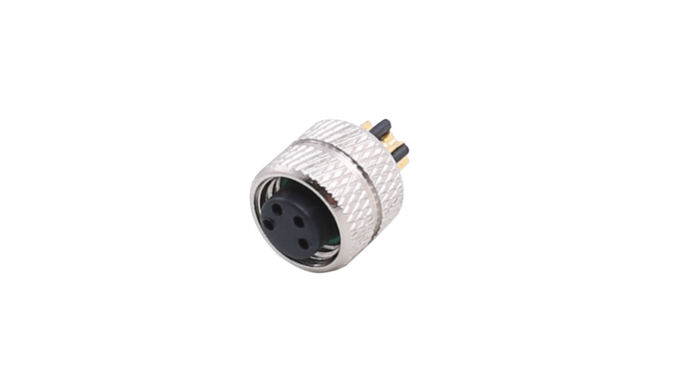

M8 connector socket for overmolding from SZ SIGNAL
SZ Signal's product range includes cost-effective circular connectors from the M5, M8, M9, M12, M16, M23, M40, 7/8 ", MINI-Din, MIL-C-5015, etc. series. A convenient selection of adapters, Y-splitters, distribution boxes and other accessories completes the range. All SZ Signal connectors can be supplied as standard catalog cables or as customer-specific cable assemblies with 100% product testing. In addition to the overmoulded pre-assembled cables, SZ-Signal also supplies straight and angled field-mountable connectors with screw terminals in plastic or shielded metal versions as well as fieldbus cables in all code variants.
Other non-published SIGNAL products and designs on request.
Material: metal/plastic
Number of poles: 3, 4, 5, 8
Coding: A, B, D
Technical data
- Connection: Solder connection
- Connection cross-section: 0.14, 0.25, 0.34mm2 (AWG26, 24, 22)
- Temperature range: -25°C to +85°C
- Plug-in cycles: >100
- Nominal voltage: 50VAC/60VDC, 60V, 30V
- Nominal current: 4A, 3A, 1.5A
- Protection class: IP67 / IP68
- Contact resistance: <10mΩ
- Insulation resistance: ≥100MΩ
- Pin contact material: CuZn
- Socket contact material: CuSn
- Surface: Au
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| 08010x-21-00x | PDF(663.33 KB) |
|---|
