Inserts & contacts M23
M23 signal contact insert (m), 6-pin solder insert
Sales price (VP) per 1 piece
CHF 8.70 excl. VAT, plus shipping costs
Item no:
7001906103
In stock: Available to order
Packaging ex works:
25 pcs
Estimated delivery time:
1-2 weeks
Description
Hummel pin insert - M23 signal 6-pin, soldering insert
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Soldering
- Number of poles: 6

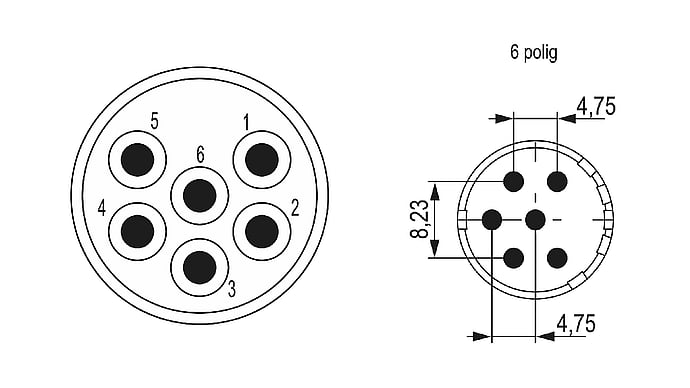

- Pole image: 6
- Direction of rotation: Standard
- Use: Pen
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 6
- Contact Ø signal: 2 mm
- Rated current signal: 20 A
- Rated voltage for pollution degree 3 Signal: 300 V~
- Test voltage signal: 840 V~
- Insulation resistance signal: > 10^8 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Catalog excerpt M23 Signal inserts | PDF(65.68 KB) |
|---|
Accessories
-

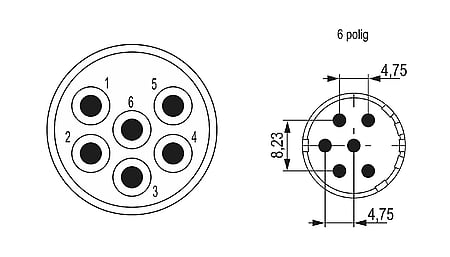

7001906104
