Inserts & contacts M23
M23 power Contact insert (w) 9-pin (5+3+PE) Crimp insert without contacts
Sales price (VP) per 1 piece
CHF 9.35 excl. VAT, plus shipping costs
Item no:
7084953102
Stock level:10 Available immediately
Packaging ex works:
25 pcs
Description

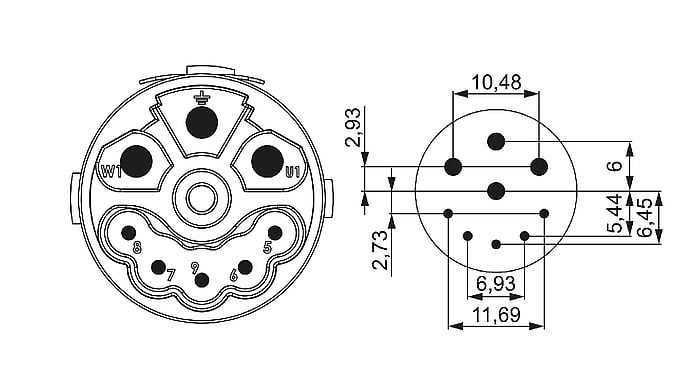

Hummel socket insert - M23 signal 9-pin (5+3+PE), crimp insert without contacts
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 9
- Pole image: 5 + 3 + PE
- Coding: 5, 6, 7, 8, 9, PE, U1, V1, W1
- Application: Socket
- Color contact insert: blue
- Insulator material: PA 6, PBT
- Number of contacts Signal: 5
- Number of contacts Power: 3
- Contact Ø signal: 1 mm
- Contact Ø power: 2 mm
- Signal connection cross-section: 0.75 - 4 mm²
- Connection cross-section power: 0.75 - 4 mm²
- Rated current signal: 8 A
- Rated current power: 28 A
- Rated voltage for pollution degree 3 Signal: 160 V~
- Rated voltage for pollution degree 3 Power: 600 V~
- Test voltage signal: 2500 V~
- Test voltage power: 4000 V~
- Insulation resistance signal: > 10^13 Ω
- Insulation resistance Power: > 10^13 Ω
- max. contact resistance signal: 3 mOhm
- Max. contact resistance power: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
Subject to errors and technical changes
