InLine cable connector TH400, 3P, screw connection, D7.0-13.5, IP68/IP69
CHF 6.60 excl. VAT, plus shipping costs
Description

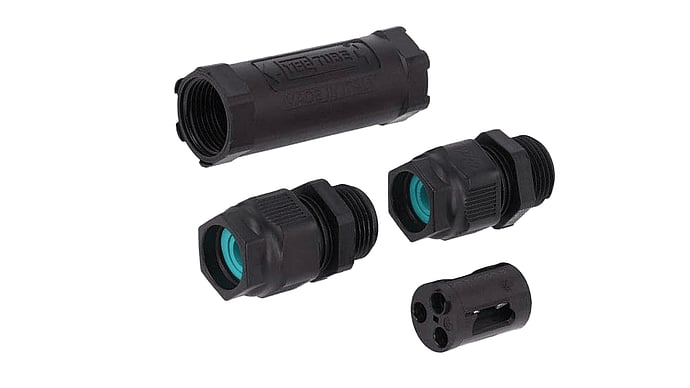

InLine TH400 cable connector from Techno, Italy
Waterproof, universally applicable InLine cable connector
- For cable diameter: Ø 7.0 - 13.5 mm
- Dimensions: Ø 26.5 x 134.0 mm
- IP68/IP69
Other Techno products and designs on request.
Technical data
Number of outputs: 2
Number of poles: 3
Dimensions: Ø 26.5 x 134.0 mm
Nominal voltage: 450V AC
Nominal current: 32 A
Connection cross-section: 0.5 - 4.0 mm2
Cable diameter: 7.0 -13.5 mm
Temperature: T 125°C
IP protection: IP68/IP69
Housing material: PA66 GF UL94 V0 / PA66 GF UL94 V2 (cable gland)
Seals: TPE
Material properties: Halogen-free
Subject to errors and technical changes
Additional information
| Cable sockets and power distributors | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| Circular connector | ||||||||||||||
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
Data sheets
| TH390/TH400 | PDF(1.48 MB) |
|---|---|
| Techno Compact Catalog | PDF(2.76 MB) |
