Electromechanics

HSK-M-EMV (PG/long)

Name: HSK-M-EMV (PG/-long) - Simpex Electronic AG
Brand: Hummel
Availability: InStock

Sales price (VP) per 1 piece

CHF 5.75 - CHF 7.50

Item no: n. a.

Packaging ex works: 50 pcs

Estimated delivery time: 1-2 weeks

Recommend:

Delivery time request Print PDF

Description

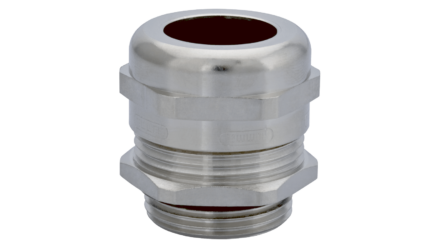

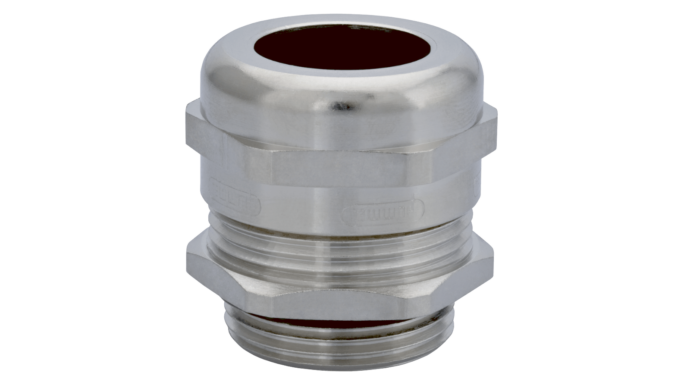

HSK-M-EMV (PG/long)
EMC cable gland from HUMMEL for various cable diameters

Protecting power units and electronic components from electromagnetic influences is becoming increasingly important. Cable management and connection solutions are particularly important in this respect. Only a secure and permanent 360o shield connection guarantees lasting protection for technical systems.
.
// HSK-M-EMV: the standard version with very good shielding attenuation
// HSK-M-EMV-D: quick and easy installation with maximum EMC protection
// PVDF versions for applications in the particularly high temperature range
// Flex versions with integrated kink protection
// Cable glands with additional strain relief (HSK-M-EMV-MZ)
// Stainless steel versions with excellent shielding attenuation
.
HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets
for international markets and numerous industries.

Further, unpublished versions on request.

Technical data

Material: Nickel-plated brass
Clamping insert: Polyamide V0 according to UL94
Molded seal: NBR
O-ring material: NBR
Protection class: IP68 - 10bar/30min, IP 69 K
Type rating according to: 4, 4X, 6, UL 50E
Temperature range: -40°C...+100°C
Variant: Metric
Thread: PG 7 / PG 9 / PG 11 / PG 13.5 / PG 16 / PG 21 / PG 29 / PG 36 / PG 42 / PG 48
Product group: EMC
