HSK-M-PVDF-EMV (metric)
CHF 9.55 - CHF 15.50
Description

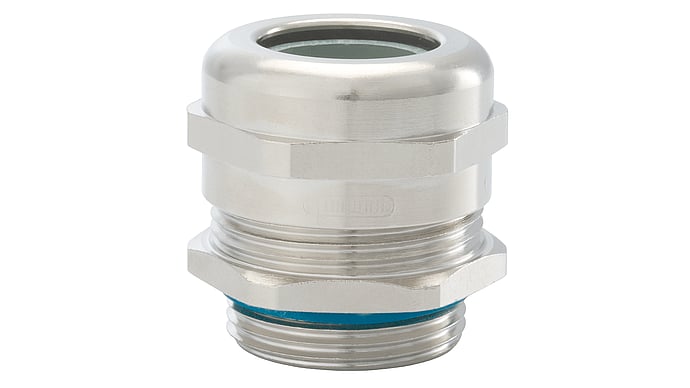

HSK-M-PVDF-EMV (metric) nickel-plated brass
EMC-compliant cable gland from HUMMEL for various cable diameters
.
Protecting power units and electronic components from electromagnetic interference is becoming increasingly important. Cable management and connection solutions are particularly important in this respect. Only a secure and permanent 360o shield connection guarantees lasting protection of technical systems.
.
// HSK-M-EMV: the standard version with very good shielding attenuation
// HSK-M-EMV-D: quick and easy installation with maximum EMC protection
// PVDF versions for applications in the particularly high temperature range
// Flex versions with integrated kink protection
// Cable glands with additional strain relief (HSK-M-EMV-MZ)
// Stainless steel versions with excellent shielding attenuation
.
HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets
for international markets and numerous industries. Other, unpublished versions are available on request.
Technical data
- Material: Nickel-plated brass
- Clamping insert: PVDF
- Molded seal: FKM
- O-ring material: FKM
- Protection class: IP68 - 10bar/30min, IP 69 K
- NEMA Type Rating: 4 / 4X / 6 / UL 50E
- Temperature range: -35°C...+150°C
- Variant: metric/long
- External thread: M12 x 1.5 / M16 x 1.5 / M20 x 1.5 / M25 x 1.5
// andere Dichtungsmaterialien zB. Silikon auf Anfrage
Subject to errors and technical changes
