Cable gland accessories
Hummel reduction RSD-Ms-Ex d (metric)
Sales price (VP) per 1 piece
CHF 4.30 - CHF 6.65
Item no:
n. a.
Stock: n. a.
Packaging ex works:
10 pcs
Estimated delivery time:
1-2 weeks
Description

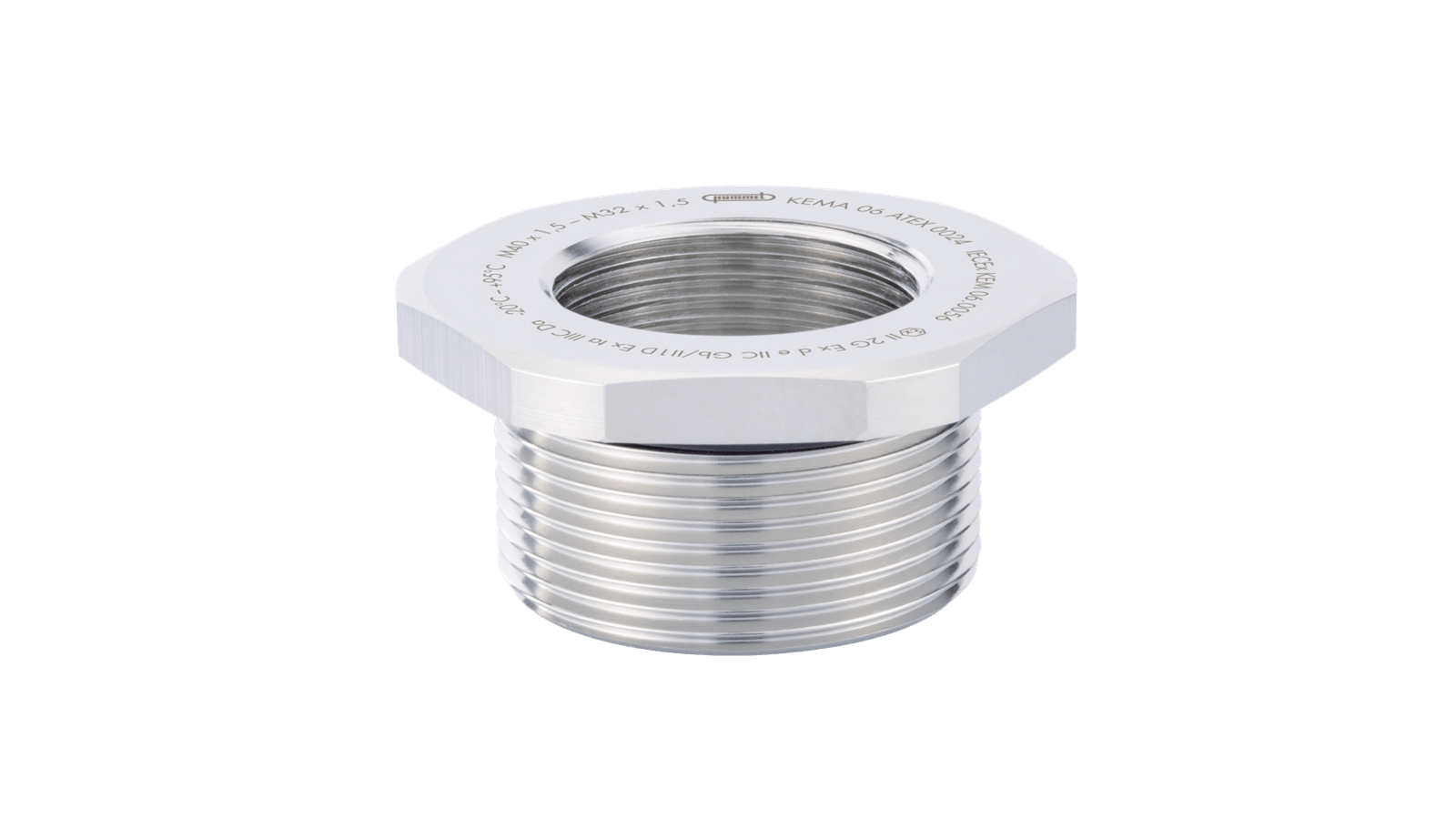

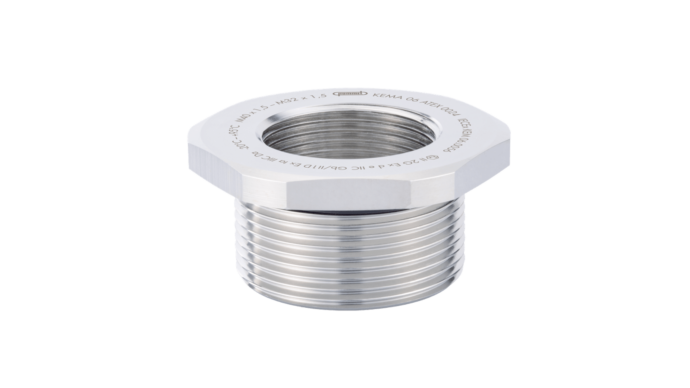

Reducer RSD-Ms-Ex d (metric) Nickel-plated brass
For some applications, it is the salt in the soup: the accessories. Seemingly insignificant, but always extremely important. This is because the desired range of functions can often only be achieved with the right accessories. This is why HUMMEL offers a huge range of accessories that are ideally matched to the cable glands and have been tried and tested over many years.
.
.
// Zubehörteile aus Kunststoff, Messing und Edelstahl
// Verschlüsse und Gegenmuttern
// O-Ringe und Anschlussgewinde-Dichtringe
// verschiedene Einsätze (Multi, Flaka)
// Reduzierungen und Erweiterungen
.
Die Zubehörteile gibt es in unterschiedlichen Materialien, Grössen und mit verschiedenen Gewindetypen. Auch die HUMMEL-Zubehörteile verfügen über alle relevanten Zulassungen für die internationalen Märkte.
.
// Verschlüsse und Gegenmuttern
// O-Ringe und Anschlussgewinde-Dichtringe
// verschiedene Einsätze (Multi, Flaka)
// Reduzierungen und Erweiterungen
.
Die Zubehörteile gibt es in unterschiedlichen Materialien, Grössen und mit verschiedenen Gewindetypen. Auch die HUMMEL-Zubehörteile verfügen über alle relevanten Zulassungen für die internationalen Märkte.
.
Other, non-published HUMMEL designs and products on request.
Technical data
- Material: Nickel-plated brass
- O-ring material: NBR
- Protection class: IP68 - 10bar, IP 69 K
- Ex protection class: II 2G Ex db eb IIC Gb / II 1D Ex ta IIIC Da
- Temperature range: -20°C...+95°C
- Variant: Metric
- Product group: Accessories

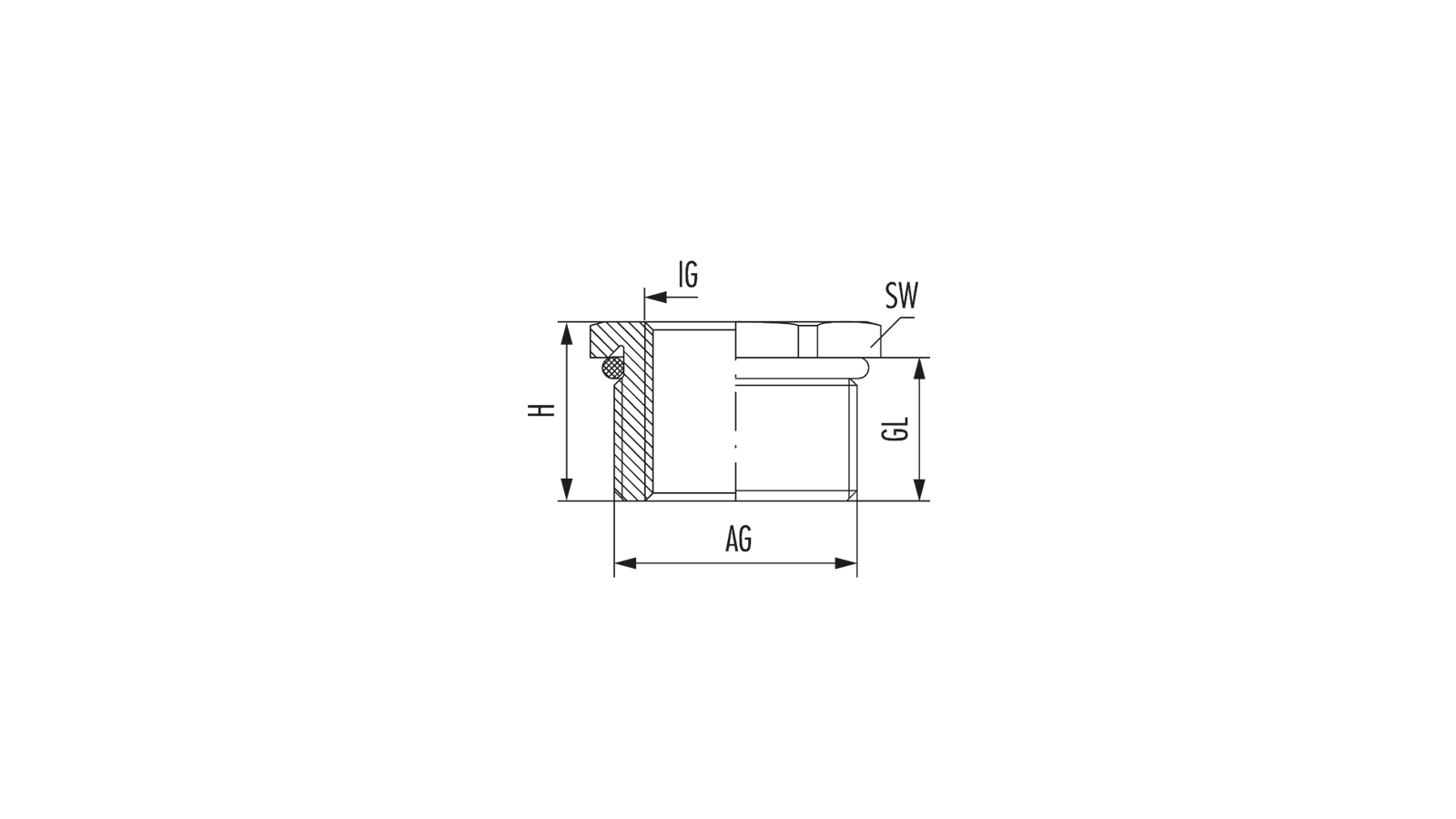

- External thread (male): M16 x 1.5 / M20 x 1.5 / M25 x 1.5 / M32 x 1.5 / M40 x 1.5 / M50 x 1.5
- Internal thread (male): M12 x 1.5 / M20 x 1.5 / M25 x 1.5 / M32 x 1.5
Subject to errors and technical changes
Additional information
| LEDs | ||
|---|---|---|
|
||
| More | ||
|
||
Data sheets
| Catalog excerpt RSD-Ms-Ex d (metric) | PDF(729.38 KB) |
|---|
