Metal cable gland
HSK-M-EMV-D (metric/long)
Sales price (VP) per 1 piece
CHF 8.80 - CHF 125.95
Item no:
n. a.
Packaging ex works:
50 pcs
Description

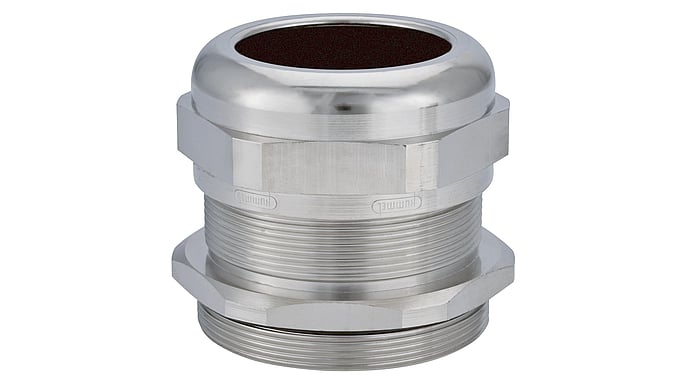

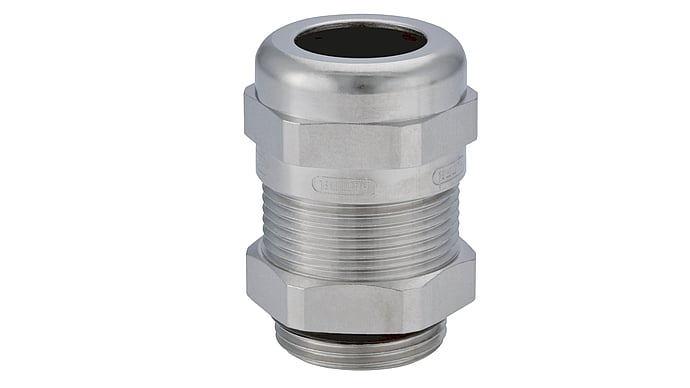

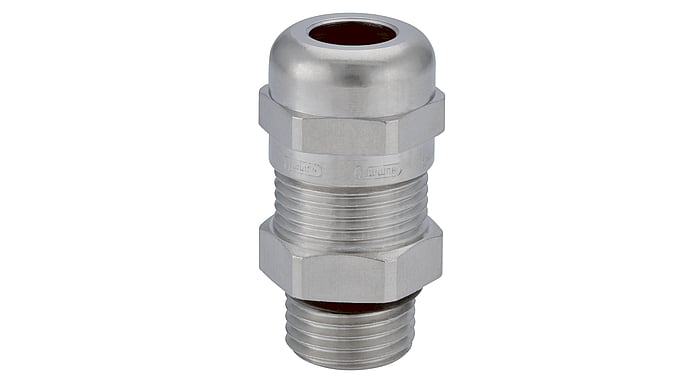

EMC cable gland HSK-M-EMV-D (metric-long) nickel-plated brass
Protecting power units and electronic components from electromagnetic interference is becoming increasingly important. Cable management and connection solutions are particularly important in this respect. Only a secure and durable 360° shielding connection guarantees lasting protection for technical systems.
.
Protecting power units and electronic components from electromagnetic interference is becoming increasingly important. Cable management and connection solutions are particularly important in this respect. Only a secure and durable 360° shielding connection guarantees lasting protection for technical systems.
.
// HSK-M-EMV: die Standardvariante mit sehr guter Schirmdämpfung
// HSK-M-EMV-D: einfache und schnelle Montage mit maximalem EMV-Schutz
// PVDF-Versionen für Anwendungen im besonders hohen Temperaturbereich
// Flex-Varianten mit integriertem Abknickschutz
// Verschraubungen mit zusätzlicher Zugentlastung (HSK-M-EMV-MZ)
// Edelstahlvarianten mit ausgezeichneter Schirmdämpfung
.
HUMMEL bietet jeweils unterschiedliche Klemmbereiche, Gewindelängen, Gewindetypen sowie diverse Dichtungsmaterialien für verschiedene Temperaturbereiche an. Die Kabelverschraubungen verfügen über alle relevanten Zulassungen für die internationalen Märkte und für zahlreiche Branchen.
.
// HSK-M-EMV-D: einfache und schnelle Montage mit maximalem EMV-Schutz
// PVDF-Versionen für Anwendungen im besonders hohen Temperaturbereich
// Flex-Varianten mit integriertem Abknickschutz
// Verschraubungen mit zusätzlicher Zugentlastung (HSK-M-EMV-MZ)
// Edelstahlvarianten mit ausgezeichneter Schirmdämpfung
.
HUMMEL bietet jeweils unterschiedliche Klemmbereiche, Gewindelängen, Gewindetypen sowie diverse Dichtungsmaterialien für verschiedene Temperaturbereiche an. Die Kabelverschraubungen verfügen über alle relevanten Zulassungen für die internationalen Märkte und für zahlreiche Branchen.
.
Further, unpublished versions on request.
Technical data
- Material: Nickel-plated brass
- Clamping insert: Metallized polyamide
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP 68 - 10 bar / IP 69 K
- NEMA Type Rating: 4 / 4X / 6
- Temperature range: -40°C to +100°C
- External thread (male): M12 x 1.5 / M16 x 1.5 / M20 x 1.5 / M25 x 1.5 / M32 x 1.5 / M40 x 1.5 / M50 x 1.5 / M63 x 1.5
Subject to errors and technical changes
Additional information
| LEDs | ||||||
|---|---|---|---|---|---|---|
|
||||||
| More | ||||||
|
||||||
Data sheets
| Catalog excerpt HSK-M-EMV-D (metric/long) | PDF(258.79 KB) |
|---|
