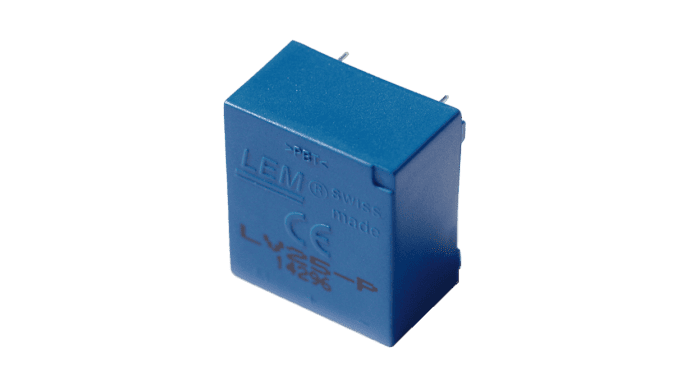

Voltage measuring transformer LEM LV 25-P

Name: LV 25-P - LEM Voltage measuring transformer LEM LV 25-P
Brand: LEM
SKU: LV 25-P
Price: 53.90 CHF
Availability: InStock

Voltage measuring transformer 10...500V / accurate Measurement of DC, AC and pulse voltages

CHF 53.90 excl. VAT, plus shipping costs

Item no: LV 25-P

In stock: Available to order

Recommend:

Delivery time request Print PDF

Description

Application principle
This voltage transformer is basically used for current measurement. To use it for voltage measurement, a current proportional to the voltage must be generated by means of an upstream primary resistor R1. The primary resistor R1 can be determined by the user.

Primary resistance R1:
The optimum accuracy of the voltage transformer is achieved when used with a rated primary current. If possible, the primary resistance should be dimensioned so that a primary current of 10mA is achieved at the nominal voltage to be measured.

Technical data

Measurement of nominal voltage Vpn 250V:
R1 = 25kOhm / 2.5W, Ip = 10mA - accuracy is +/- 0.9% of Vpn (Ta = +25°C)
R1 = 50kOhm / 1.25W, Ip = 5mA - accuracy is +/- 1.5% of Vpn (Ta = +25°C)

Additional information

Voltage transformer

Primary voltage (Vpn)	10 to 500
Primary signal	AC + DC
Measuring range (Vpm)	700
Accuracy	0.9%
Secondary output signal	10mA
Supply	+/- 12...15Vdc
Application	Industry
Housing assembly	Printed circuit board

LEDs

Manufacturer	LEM

Temperature range	0...+70°C

Data sheets

LV 25-P	PDF(211.25 KB)

Downloads

3D Step File LV 25-P	Zip file (695.37 KB)
