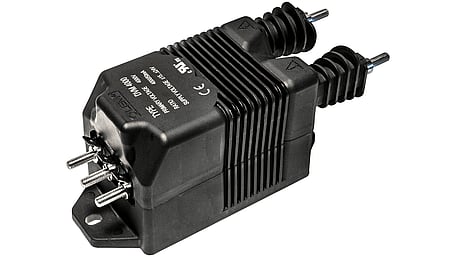

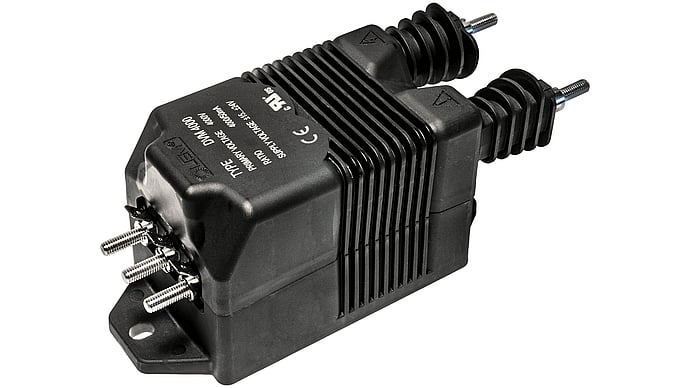

Voltage transformer
Voltage transformer 3000V / compact / Measurement of DC, AC, pulse voltages
The LEM DVM 3000 voltage transformer for high and medium voltages in the traction sector and for industrial applications.
CHF 569.75 excl. VAT, plus shipping costs
Item no:
DVM 3000
In stock: Available to order
Description
- Compact design (30% smaller, 25% less volume)
- One product for all measuring ranges
- Insulation test voltage: 12 KVRMS / 50 Hz / 1 min
- High RMS voltage (5 kV) for partial discharge quenching voltage @10 pC
- High accuracy:
- +/- 0.5% of VPN at + 25°C
- +/- 1% of VPmin Operating temperature range
- High frequency bandwidth (fast response time): 13 KHz (-3 dB) (50 ms)
- Manufacturer LEM
Technical data
- Measurement of DC, AC and pulse voltages with galvanic isolation
- Supply voltage: 10.8 - 26.4 V
- Operating temperature: -40°C to +85°C
- Flexible modular connections for secondary sides
- Signal output: +/- 50 mA
Additional information
| Voltage transformer | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| DVM 3000 | PDF(775.85 KB) |
|---|
Downloads
| 3D Step File DVM 3000 | Zip file (4.33 MB) |
|---|
Similar products
-

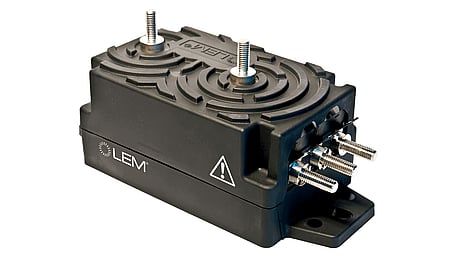

DVL 150
Voltage transformer 150V / accurate Measurement of DC, AC and pulse voltagesCHF 260.7012 Available immediately -

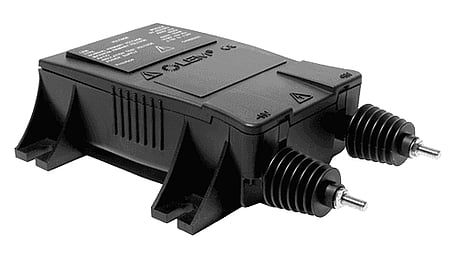

DV 2800/SP4
Voltage transformer 2800V / precise measurement of DC, AC and pulse voltagesCHF 830.30Available to order -
DVM 4000
Voltage transformer 4000V / compact / Measurement of DC, AC, pulse voltagesCHF 569.75Available to order -
DVM 1000
Voltage transformer 1000V / compact / Measurement of DC, AC, pulse voltagesCHF 509.70Available to order -
DVL 1500
Voltage transformer 1500V / accurate Measurement of DC, AC and pulse voltagesCHF 260.70Available to order -
DVM 4200
Voltage transformer 4200V / compact / Measurement of DC, AC, pulse voltagesCHF 569.75Available to order -
DVL 125
Voltage transformer 125V / accurate Measurement of DC, AC and pulse voltagesCHF 260.7012 Available immediately -

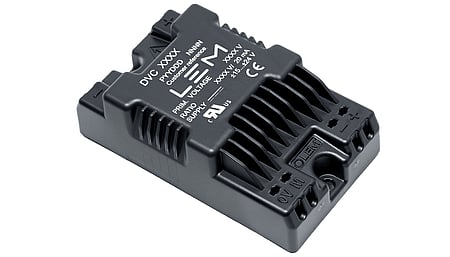

DVC 1000
