Voltage transformer 1000VRMS / Bipolar measurement of DC, AC, pulse voltages

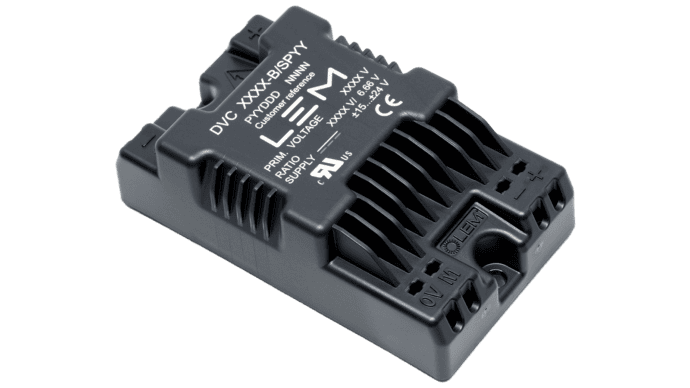

Name: DVC 1000-B - LEM voltage transformer 1000VRMS / Bipolar measurement of DC, AC, pulse voltages
Brand: LEM
SKU: DVC 1000-B
Price: 154.15 CHF
Availability: InStock

CHF 154.15 excl. VAT, plus shipping costs

Item no: DVC 1000-B

In stock: Available to order

Recommend:

Delivery time request Print PDF

Description

Nominal AC and DC voltage measurement of 1000 V (measuring range 1500 V)
Compact: 131.6 cm3 total volume
Space-saving: 89 x 51 x 29 mm
Panel mounting / DIN rail adapter optional
Weight: 57 g
Robust
Separation amplifier technology
High overall accuracy over the operating temperature range: 1.7 %
Fast response time: 12 to 17 us at 90 %

Technical data

4.2 kV as insulation test voltage
Power supply +/- 15 to 24 V bipolar
Operating temperature range from -40 to +85°C
Bandwidth (-3 dB): 35 kHz
Output signal direct imaging +/- 6.66 V at +/- 1000 Volt peak
DIN rail mounting adapter as an option
Meets the latest industry standards and IRIS requirements for web traction applications (EN 45545)
Meets all relevant fire and smoke requirements prescribed for railroad applications
Auxiliary converters, main converters for light rail vehicles, DC substations for light rail vehicles (voltage regulation), DC power supply monitoring (24 V/110 V), EV charger, battery storage...

Additional information

Voltage transformer

Primary voltage (Vpn)	1000
Primary signal	AC + DC
Measuring range (Vpm)	1500
Accuracy	1.7%
Secondary output signal	6.66V
Supply	+/- 15...24Vdc
Application	Railroad, industry
Housing assembly	Printed circuit board

LEDs

Manufacturer	LEM

Temperature range	-40…+85°C

Data sheets

DVC 1000-B	PDF(1.91 MB)

Downloads

3D Step File DVC 1000-B	Zip file (3.56 MB)

Voltage transformer 1000VRMS / Bipolar measurement of DC, AC, pulse voltages
