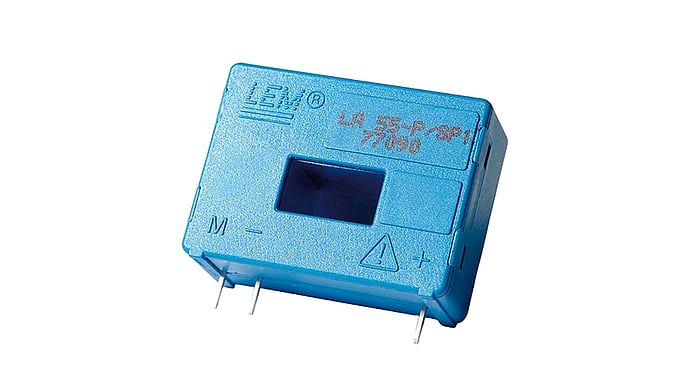

Current transformer
Current transformer 50A / measuring range 100A / high accuracy / fast response time / DC, AC and pulse currents
CHF 29.20 excl. VAT, plus shipping costs
Item no:
LA 55-P/SP1
In stock: Available to order
Description
- Series: LA55
- Special version: Measuring range up to 100 A, transformation ratio Np to INs = 1 : 2000
- Closed loop Hall effect current sensor (AC, DC, pulse current measurement)
- Galvanic isolation of primary and secondary circuit
- Bandwidth: DC up to 200 kHz
- Housing: UL 94-V0 plastic
- Assembly: PCB
- Trough-hole, opening 12.7 x 7 mm
- 5 year guarantee
- Advantages: Excellent accuracy, very good linearity, low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high interference immunity, overload capability
- Typical applications: Drives, frequency converters, battery-powered applications UPS, SMPS, welding applications
Technical data
- Rated current: 50 A
- Measuring range: up to 100A
- Current output, direct mapping: 25 mA
- Supply: ±12 ... 15 V bipolar
- Accuracy: ±1.25 %
- Operating temperature: -25 °C to +85 °C
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 55-P/SP1 | PDF(442.14 KB) |
|---|
Downloads
| 3D STEP File LA 55-P/SP1 | Zip file (798.82 KB) |
|---|
