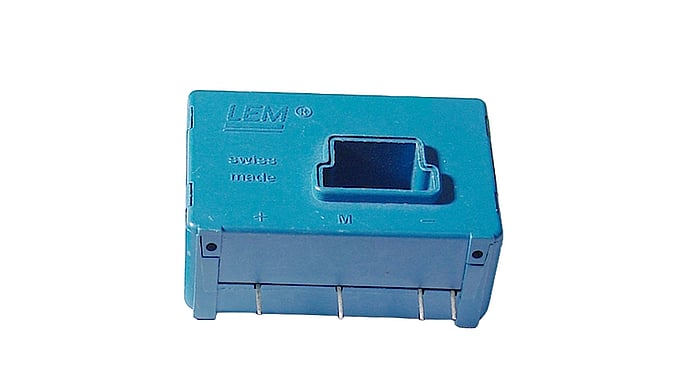

Current transformer
Current transformer 200A / measuring range 300A / high accuracy / fast response time / DC, AC and pulse currents
High performance at an affordable price.
CHF 56.00 excl. VAT, plus shipping costs
Item no:
LA 200-P
Stock level:12 Available immediately
Description
- Series: LA200P
- Closed loop Hall effect current sensor (AC, DC, pulse current measurement)
- Galvanic isolation of primary and secondary circuit
- Bandwidth: DC up to 100 kHz
- Housing: UL 94-V0 plastic
- Assembly: PCB
- Trough Hole
- 5 year guarantee
- Advantages: Excellent accuracy, very good linearity, low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high interference immunity, overload capability
- Typical applications: Drives, frequency converters, battery-powered applications UPS, SMPS, welding applications
Technical data
- Rated current: 200 A
- Measuring range: up to 300A
- Current output, direct mapping: 100 mA
- Supply: ±12 ... 15 V bipolar
- Accuracy: ±0.4 %
- Operating temperature: -40 °C to +85 °C
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 200-P | PDF(479.4 KB) |
|---|
Downloads
| 3D STEP File LA 200-P | Zip file (909.49 KB) |
|---|
