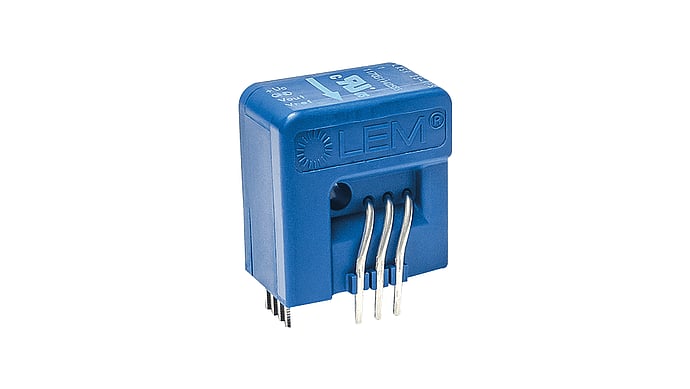

Current transformer
Current transformer 15A / DC, AC, pulse / multi-range / minimum offset drift
CHF 15.90 excl. VAT, plus shipping costs
Item no:
LXSR 15-NPS
In stock: Available to order
Description
- DC, AC and pulse current measurement with galvanic isolation
- Current measurements from 2 to 25 ARMS nominal
- 3 models (6A, 15A and 25A)
- Low offset drift
- Reference Access OUT & IN (0.5 to 2.75V) on separate pin
- Integrated primary conductor + additional primary conductor opening D=3.2mm
- Attractive price
- 5 year guarantee
- Compact design
- Manufacturer LEM
Technical data
- Unipolar supply 0, +5 V
- Insulation test voltage: up to 4.3KVRMS / 50 Hz / 1 min
- Closed loop reverb effect technology based on LEM's proprietary and patented ASIC
- Operating temperature range: -40°C to + 85°C
- Voltage output (0.625V at Ipn)
- Short response time 0.4 µs
Note
- 3 different primary connection configurations are possible for each model, allowing currents of 1/2 or 1/3 of Ipn to be measured with high resolution
- Bipolar current measurement despite unipolar voltage supply 0/+5V
- 100% compatible with the previous LEM series LTSR
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet LXSR | PDF(1.09 MB) |
|---|
Downloads
| 3D Step File LXSR | Zip file (499.19 KB) |
|---|
