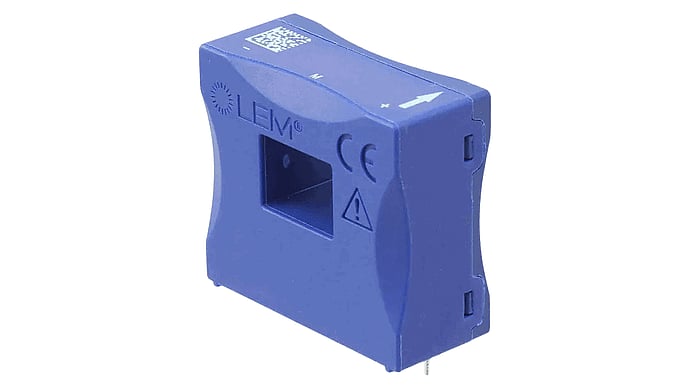

Current transformer
Current transformer 130A / high accuracy / DC, AC and pulse currents
High performance at an affordable price.
CHF 31.50 excl. VAT, plus shipping costs
Item no:
LA 130-P
In stock: Available to order
Description
- PCB assembly
- A single compact design
- 5 year guarantee
- Manufacturer LEM
Technical data
- Measurement of DC, AC and pulse currents with galvanic isolation
- High accuracy: +/- 0.5% of I PN @ +25°C
- Bipolar power supply: +/- 12Vdc to +/- 15Vdc
- Clearance and creepage distance: 8mm + CTI 600
- Insulation test voltage : 4.3kVrms / 50Hz / 1min
- Current output
- Operating temperature: -40°C to +85°C
- No insertion loss with a large opening
- Response time: 0.5µs
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 130-P | PDF(197.42 KB) |
|---|
Downloads
| 3D Step File LA 130-P | Zip file (526.38 KB) |
|---|
