Current transformer

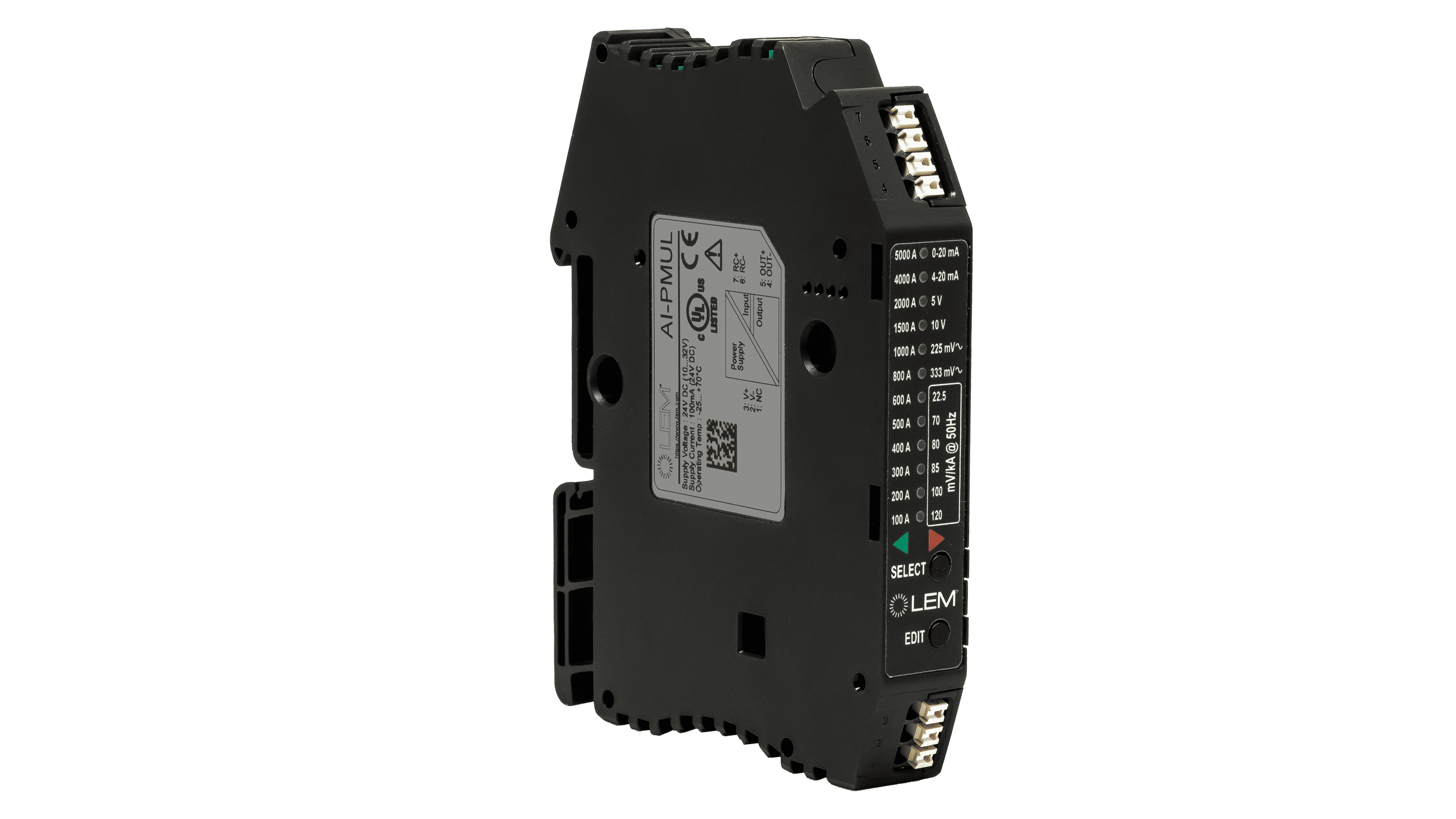

Digital signal conditioner for Rogowski coils
CHF 203.10 excl. VAT, plus shipping costs
Item no:
AI-PMUL
Stock: Available to order
Description
- Integrator for Rogowski coils
- Signal conditioner for the secondary signal of Rogowski coils
- Linearity error below 0.1%
- In combination with Rogowski coils of the LEM ART & ARU class 0.5, the user receives a universal measuring and monitoring solution
- DIN rail mounting
- An SMA coaxial connector is optionally available for measuring very low currents
- In three-phase networks, 3 AI-PMULs can be plugged together, the power supply only needs to be connected to one of the AI-PMULs
- An A1 version with direct imaging output will follow shortly
Technical data
- Choice of 12 current ranges from 100 to 5000A
- 6 selectable Rogowski coil sensitivities from 22.5 to 120mV/kA at 50Hz
- 6 possible outputs: 4 true RMS outputs: 0-20mA, 4-20mA, 0-5V, 0-10V and 2 instantaneous voltage outputs of 0-225mV and 0-333mV
- Simple configuration via 2 buttons
- Bi-color LEDs indicate the status
- Operating temperature range -25°C to +70°C
- Unipolar power supply +24V
Additional information
| Current transformer | ||
|---|---|---|
|
||
| LEDs | ||
|
||
Data sheets
| AI-PMUL | PDF(1.27 MB) |
|---|---|
| Info sheet AI-PMUL | PDF(400.58 KB) |
Downloads
| 3D Step File AI-PMUL | Zip file (490.89 KB) |
|---|
