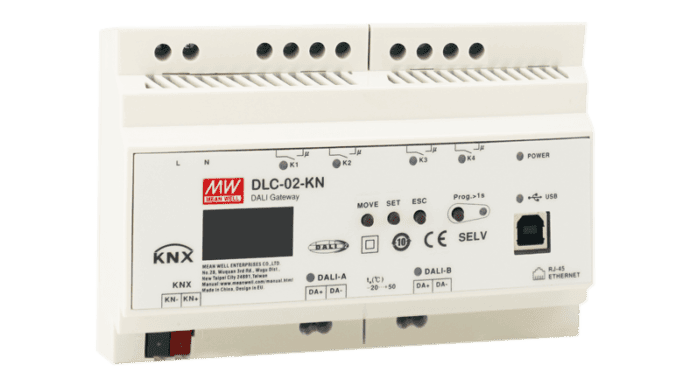

KNX/DALI gateway 2×64 / 4 switching relays, DT8 Tunable White, RGBW
CHF 427.80 excl. VAT, plus shipping costs
Description
The KNX / DALI gateway DLC-02KN connects the KNX installation bus with the DALI bus. Two complete DALI groups of 64 devices can be programmed. In addition to the gateway, 4 relay contacts are installed which can be used as KNX actuators.
The gateway can be used to control DALI DT6 Single Color and DALI DT8 Tunable White as well as RGBW applications. Full color control according to DT8 standard.
Technical data
- Simple configuration and installation
- 2x DALI 2.0 bus channels for the operation of 2 x 64 DALI drivers and 2 x 12 input devices.
- DALI DT6, DT8 (Tunable White, RGBW, xy-coordinates)
- Integrated DALI power supply (up to 250mA per channel)
- LCD display
- Programming directly via buttons on the gateway, via ETS or integrated web server
- 2 x 16 DALI groups / 2 x 16 DALI scenes
- Timer function with backup battery
- 4 relay contacts 250V/5A built-in
- Dimensions 144 x 90 x 58.3mm (W x H x D)
- 5 year guarantee
Additional information
| KNX system devices | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| Data sheet DLC-02-KN | PDF(1.07 MB) |
|---|---|
| User Manual DLC-02-KN | PDF(2.36 MB) |
| KNX Application Database | PDF(650.61 KB) |
| Test Report DLC-02 | PDF(249.68 KB) |
